About
Specifications

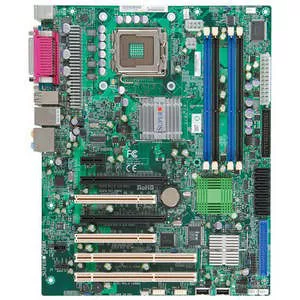

C2SBX Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
C2SBX Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-C2SBX-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
C2SBX
Product Name
C2SBX Workstation Motherboard
Package Type
Bulk
Product Type
Workstation Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
X38 Express
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Sound Controller Model
ALC 883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
7
Number of PCI Slots
2
Number of PCI-X Slots
2
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Total Number of Onboard FireWire/i.LINK Ports
2
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
Dual Channel memory supported
BIOS Features:
- 16Mb Flash EEPROM with SPI BIOS
- Winbond W39V080FAP
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V,±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio
- Total of five 4-pin fan headers
- 5 x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on / off control
- Support 3-pin PWM fans (without speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan conn
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) Support
- PECI
- CPU / System Overheat LED
- Suspend-state indicator LED
- +5V standby alert LED
- Chassis intrusion Detection
- Chassis intrusion Header
- Onboard voltage monitors for CPU Core Voltage, Memory Voltage,+1.8V, +3.3V, +3.3V standby, +5V, Vbat (battery voltage) and ±12V
- Fan status monitor with firmware, PWM (Pulse Width Modulation) 4-pin fan speed control
- CPU 3-Phase-switching voltage regulator
- Supero Doctor III
- Watch Dog
- NMI
- Power-up mode control for recovery from AC power loss
- CPU/System overheat LED and control
- System resource alert via Supero Doctor III
- Auto-switching voltage regulator for the CPU core
- CPU Thermal Trip support
- Thermal Monitor 2 (TM2) support
- SMT support
- PECI (Platform Environment Configuration Interface) support
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel X38 chipset utilities
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- External modem ring-on
