C2SBA+ Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
C2SBA+ Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-C2SBA+-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
C2SBA+
Product Name

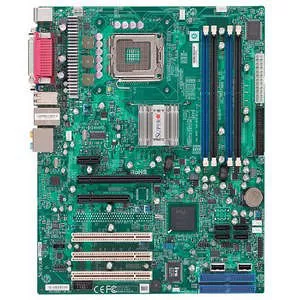

C2SBA+ Desktop Motherboard
Packaged Quantity
1
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
G33
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Audio
Sound Controller Model
ALC 883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Width
12"
Depth
9.6"
Miscellaneous
Package Contents
- 1 x C2SBA+ Desktop Board
- 1 x Motherboard Manual for C2SBA+
- 1 x ATX Floppy Cable
- 2 x ATA 66/100 IDE LP Cable
- 4 x SATA Cable (2Ft.)
- 1 x Version 1.20 (or newer) CD
- 1 x I/O Shield for C2SBA+
Additional Information
Dual Channel memory supported
Supported CPU Series:
- Xeon 3200 Series
- Xeon 3000 Series
Chipsets:
- Northbridge: Intel G33
- Southbridge: Intel ICH9
BIOS Features:
- 16Mb Flash EEPROM with SPI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Hardware Monitoring:
- Onboard voltage monitors for CPU Core Voltage, Memory Voltage,+1.8V, +3.3V, +3.3V standby, +5V, Vbat (battery voltage) and ±12V
- Fan status monitor with firmware 4 pin fan speed control
- CPU 3-Phase-switching voltage regulator
- SuperDoctor III
- Watch Dog
- NMI
- Power-up mode control for recovery from AC power loss
- CPU/System overheat LED and control
- System resource alert via Supero Doctor II
- Auto-switching voltage regulator for the CPU core
- CPU Thermal Trip support
- Thermal Monitor 2 (TM2) support
- SMT (Trusted Platform Module) support
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
- CPU Core 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency ratio
- Total of three 4-pin fan headers
- 3 x fans with tachometer monitoring
- Status monitor for speed control
- Status monitor for on / off control
- Support 3-pin PWM fans (without speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM)
- Monitoring for CPU and chassis environment
- CPU thermal trip support
- Thermal Monitor 2 (TM2) Support
- PECI
- CPU / System Overheat LED
- Standby power alert LED
- Chassis intrusion Detection
- Chassis intrusion Header
ACPI Features:
- Slow blinking LED for suspend state indicator
- BIOS support for USB keyboard
- Main switch override mechanism
- External modem ring-on
Support CD Contents:
- BIOS flash upgrade utility
- Drivers
- Software for Intel G33 chipset utilities
