About
Specifications

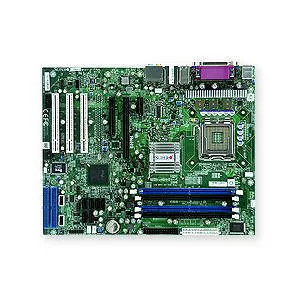

C2SBA+II Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
About
C2SBA+II Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-C2SBA+II-B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
C2SBA+II
Product Name
C2SBA+II Desktop Motherboard
Package Type
Bulk
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
G33
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
8 GB
Memory Standard
Memory Technology
DDR2 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Audio
Sound Controller Model
ALC 883
Audio Channels
7.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
6
Number of PCI Slots
3
Total Number of PCI Express Slots
3
Number of PCI Express x1 Slots
1
Number of PCI Express x4 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
6
Parallel Port
Yes
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of IDE Interfaces
2
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Form Factor
ATX
Width
12"
Depth
9.6"
Miscellaneous
Additional Information
BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard support
- SMBIOS 2.3
Environmentally Friendly
Yes
