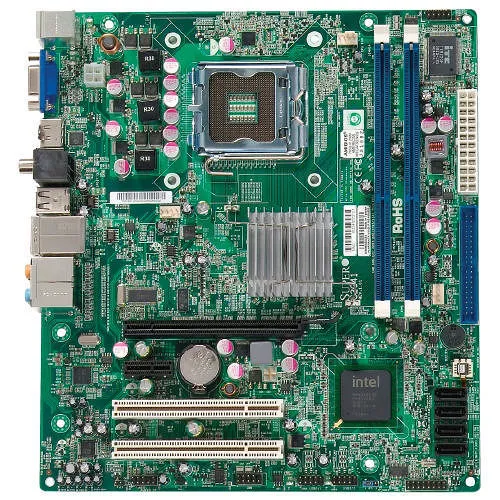

C2G41 Desktop Board is designed with the utmost attention to detail to provide the highest standards in quality and performance.C2G41 motherboard is giving a good balance of price and system performance.
About
C2G41 Desktop Board is designed with the utmost attention to detail to provide the highest standards in quality and performance.C2G41 motherboard is giving a good balance of price and system performance.
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-C2G41-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
C2G41
Product Name
C2G41 Desktop Motherboard
Package Type
Retail
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
G41 Express
Total Processor Supported
1
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket T LGA-775
Processor Supported
Front Side Bus
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Maximum Memory Supported
4 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
Intel
Graphics Controller Model
GMA X4500
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC888
Audio Channels
5.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
4
Number of PCI Slots
2
Total Number of PCI Express Slots
2
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
S/PDIF
Yes
Number of S/PDIF Out Ports
2
VGA
Yes
HDMI
Yes
Number of HDMI Outputs
1
Network (RJ-45)
Yes
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of IDE Interfaces
1
Number of SATA Interfaces
4
Total Number of Onboard USB Ports
2
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Onboard S/PDIF Header
Yes
Physical Characteristics
Form Factor
Micro ATX
Width
9.6"
Depth
8.6"
Miscellaneous
Additional Information
System BIOS:
- 16 Mb SPI Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0
- USB Keyboard Support
- SMBIOS 2.3
Environmentally Friendly
Yes
