SMC-MBD-A2SAV-O-00
MPN: MBD-A2SAV-O

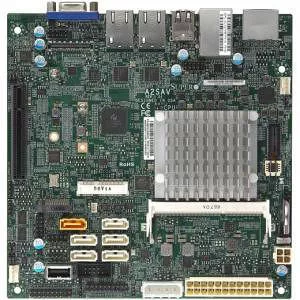

Supermicro MBD-A2SAV-O Server Motherboard - Intel® Atom® Processor E3940 - BGA1296

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
MBD-A2SAV-O
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Model
A2SAV
Product Name
A2SAV Server Motherboard
Package Type
Retail
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket BGA-1296
Integrated Processor
Integrated Processor Type
Atom
Integrated Processor Model
x5-E3940
Integrated Processor Speed
1.60 GHz
Integrated Processor Core
Quad-core (4 Core)
Memory
Number of Memory Slots
1
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Technology
DDR3L SDRAM
Memory Speed Supported
1866 MHz
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
  • 10
  • 1
  • 0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    HD Graphics 500
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    1
    Number of PCI Express x8 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    HDMI
    Yes
    DisplayPort
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Number of M.2 Interfaces
    1
    Total Number of Onboard USB Ports
    5
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Package Contents
    • A2SAV Server Motherboard
    • 1 x I/O Shield
    • 1 x 6 I/O Cables
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty
    1 Year
