SMC-CSE-GS5A-753R-00
MPN: CSE-GS5A-753R

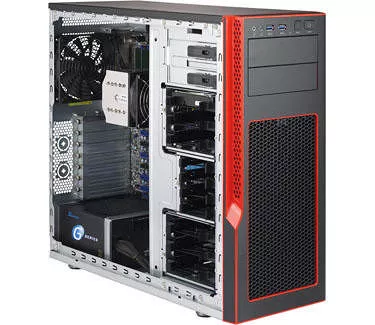

Supermicro CSE-GS5A-753R SuperChassis GS5A-753R Mid-tower Chassis

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-GS5A-753R
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
GS5A-753R
Product Name
SuperChassis GS5A-753R (Red)
Product Type
Chassis
Processor & Chipset
Processor Support
Single and Dual Intel and AMD processors
Form Factor & Motherboard Support
Form Factor
Mid-tower
Motherboard
  • ATX 12" x 10"
  • Micro-ATX 9.6" x 9.6"
Dimensions
Height
18.1"
Width
7.9""
Depth
19.4""
Net Weight
20 lbs
Gross Weight
26 lbs
Color
Black / Red
I/O Expansions
Number of Total Expansion Bays
12
Number of External 5.25" Bays
2
Number of External 3.5" Bays
6
Number of External 2.5" Bays
4
Number of Total Expansion Slots
7 (Full-height, Full-length)
Peripheral Drives
  • 2x standard 5.25" drive bay
Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • HDD activity LED
  • Power Status LED
Ports
  • 2x USB 3.0 ports
  • 1x Headphone
  • 1x Microphone
System Cooling
Fans
  • 3x 120mm hot-swap fans
Operating Environment (System)
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Ranger
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Description
Input Voltage
  • 100-240 V AC
Number of Power Supplies Installed
1
Maximum Power Supply Wattage
750 W
Certification
80 Plus Gold

Specifications
