SMC-CSE-847E1C-R1K23JBOD-00
MPN: CSE-847E1C-R1K23JBOD

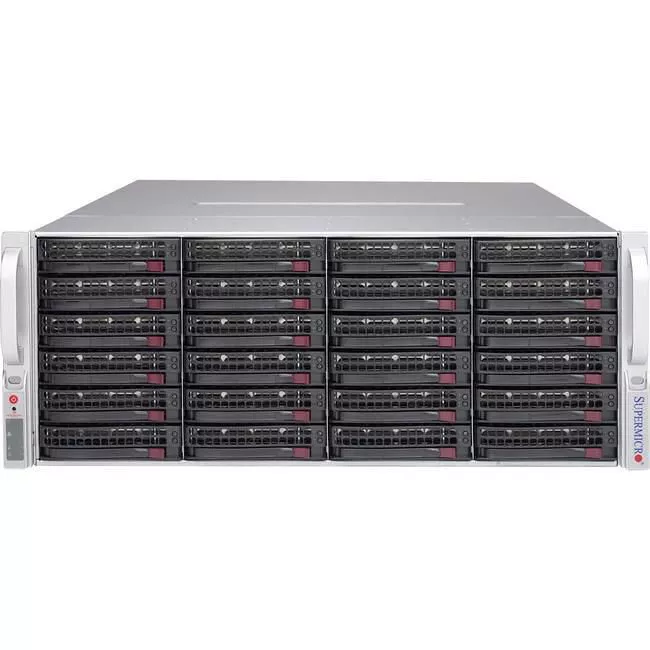

Supermicro CSE-847E1C-R1K23JBOD Drive Enclosure - 4U Rack - Drive Enclosure - 4U Rack - 80+ Titanium - Black

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-847E1C-R1K23JBOD
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
CSE-847E1C-R1K23JBOD
Product Name
SuperChassis 847E1C-R1K23JBOD
Product Type
Server Case
Technical Information
Motherboard Supported
EATX
Number of Fans Installed
7
Installed Fan Size
3.15"
Bays
Number of External 3.5" Bays
44
Number of Total Expansion Bays
44
Power Description
Power Supply Installed
Yes
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Power Supply Wattage
1200 W
Physical Characteristics
Product Color
Black
Compatible Rack Unit
4U
Form Factor
Rack-mountable
Height
7"
Width
17.2"
Depth
27.5"
Miscellaneous
Package Contents
  • SuperChassis 847E1C-R1K23JBOD
  • 2 x 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
  • 1 x 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1 x 20-port 4U (SC847E1C JBOD) SAS3 12Gbps single-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD
  • 1 x JBOD chassis power control board with IPMI remote on/off feature
  • 2 x SC847D JBOD Mini SAS HD Ext-to-Int adapter ,HF,RoHS/REACH,PBF
  • 2 x 4 Pin to 4 Pin I2C cable, 50cm, 26AWG
  • 1 x INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
  • 2 x Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s
  • 4 x Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s
  • 4 x Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI]
  • 1 x 24pin standard output with 5V high current 100Amp power distributor board for SC847
  • 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Warranty
Limited Warranty
1 Year
