SMC-CSE-847BA-R1K28LPB-00
MPN: CSE-847BA-R1K28LPB

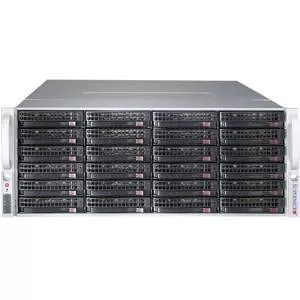

Supermicro CSE-847BA-R1K28LPB SuperChassis 847BA-R1K28LPB (Black)

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-847BA-R1K28LPB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC847BA-R1K28LPB
Product Name
SuperChassis 847BA-R1K28LPB (Black)
Packaged Quantity
1
Product Type
Server Case
Technical Information
Motherboard Supported
  • ATX
  • EATX
    • Number of Fans Installed
    7
    Installed Fan Size
    3.15"
    Bays
    Number of External 3.5" Bays
    36
    Number of External 2.5" Bays
    2
    Number of Total Expansion Bays
    38
    I/O Expansions
    Number of Total Expansion Slots
    7
    Power Description
    Power Supply Installed
    Yes
    Number of Power Supplies Installed
    1
    Power Supply Wattage
    1280 W
    Physical Characteristics
    Product Color
    Black
    Compatible Rack Unit
    4U
    Form Factor
    Rack-mountable
    Height
    7"
    Width
    17.2"
    Depth
    27.5"
    Miscellaneous
    Package Contents
    • SuperChassis 847BA-R1K28LPB (Black)
    • 1 x 2U 6Gbps Backplane Supports 12x3.5"" SAS/SATA HDD/SSD with iPass Connectors
    • 1 x 4U 6Gbps Backplane Supports 24x3.5"" SAS/SATA HDD/SSD w/ iPass Connectors
    • 2 x 1U 1280W, redundant single output power supply
    • 2 x 1U 1280W, redundant single output power supply
    • 1 x 24pin standard output with 5V high current 100Amp power distributor board for SC847
    • 1 x SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
    • 1 x SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
    • 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    • 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
    • 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
    • 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    • 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
    • 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
    • 7 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    • 7 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    • 1 x Front control board adapter (TB826) for SC216,826,936,846
    • 1 x Front control board adapter (TB826) for SC216,826,936,846
    • 36 x Black gen 5.5 hot-swap 3.5"" HDD tray
    • 1 x SC847B LP MB Tray assembly,HF,RoHS/REACH
    • 36 x Black gen 5.5 hot-swap 3.5"" HDD tray
    • 1 x SC847B WIO MB Tray assembly,HF,RoHS/REACH
    • 1 x set Rail set, quick/quick, default for 4U 17.2
    • 1 x set Rail set, quick/quick, default for 4U 17.2
