MPN: CSE-847A-R1400LPB

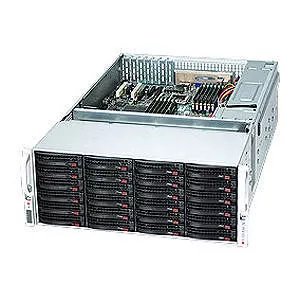

Supermicro CSE-847A-R1400LPB SuperChassis SC847A-R1400LPB 4U Rackmount Enclosure
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-847A-R1400LPB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC847A-R1400LPB
Product Name
SuperChassis SC847A-R1400LPB Rackmount Enclosure
Product Type
Server Case
Technical Information
Motherboard Supported
Number of Fans Installed
7
Bays
Number of External 3.5" Bays
36
Number of Total Expansion Bays
36
I/O Expansions
Number of Total Expansion Slots
7
Power Description
Input Voltage
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Power Supply Wattage
1400 W
Redundant Power Supply
Yes
Physical Characteristics
Product Color
Black
Compatible Rack Unit
4U
Form Factor
Rack-mountable
Height
7"
Width
17.2"
Depth
27.5"
Weight (Approximate)
80 lb
Miscellaneous
Package Contents
- SuperChassis SC847A-R1400LPB Rackmount Enclosure
- 1 x SC847 Intel X8, X7 PC Air Shroud
- 1 x 4U SAS / SATA Direct Attached Backplane
- 1 x 16 to 16 pin Front Control Cable, Round Ribbon 20"
- 2 x US Power Cord
- 1 x 16-pin Control Panel Converter Cable
- 7 x 10.5" , 4-pin Middle Fan Power Extension (PWM)
- 7 x (80 x 38mm) 4-pin PWM Fan with HUS
- 36 x 3.5" Hot-swap HDD Bays
- 1 x Mounting Rail Assembly; 26.8" - 34"
- 2 x 1400W Gold-Level Power Supply with PMBus
- 1 x 24-pin x8 Power Distributor
- 1 x LP Rear Window
Environmentally Friendly
Yes
