MPN: CSE-846TQ-R1200B

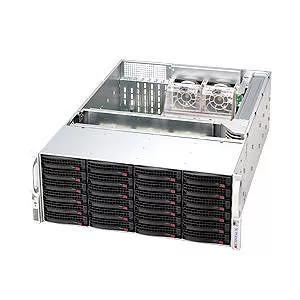

Supermicro CSE-846TQ-R1200B SuperChassis SC846TQ-R1200B Rackmount Enclosure - 4U - 24 Bays - 1200W
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-846TQ-R1200B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC846TQ-R1200B
Product Name
SuperChassis SC846TQ-R1200B Rackmount Enclosure
Product Type
Server Case
Technical Information
Motherboard Supported
Number of Fans Installed
5
Bays
Number of External 3.5" Bays
24
Number of Total Expansion Bays
24
I/O Expansions
Number of Total Expansion Slots
7
Power Description
Input Voltage
Number of Power Supplies Supported
2
Number of Power Supplies Installed
2
Power Supply Wattage
1200 W
Redundant Power Supply
Yes
Physical Characteristics
Product Color
Black
Compatible Rack Unit
4U
Form Factor
Rack-mountable
Height
7"
Width
17.2"
Depth
26"
Weight (Approximate)
75 lb
Miscellaneous
Package Contents
- SuperChassis SC846TQ-R1200B Rackmount Enclosure
- 1 x SC846 Intel X8, X7 PC Air Shroud
- 1 x 846 SAS Backplane with AMI MG9072 Chip
- 1 x 16 to 16 pin front control cable, round ribbon 20"
- 2 x US power cord
- 1 x 16-pin Control Panel Converter Cable
- 2 x (80 x 32mm) 4-pin PWM fan assembly
- 3 x (80 x 38mm) 4-pin PWM fan with HUS for SC846
- 24 x 3.5" Hot-swappable Hard Drive Trays (Black)
- 1 x Mounting Rail Assembly; 26.8" - 34"
- 2 x 1200W Gold-Level power supply with PM Bus
- 1 x 24-pin x8 power distributor
- 1 x Palletized Package
Additional Information
- Optional 2 x Internal Fixed 3.5" HDD or 2 x fixed 2.5" HDD + DVD
Backplane:
- 3/6 Gb support
- SES-2 Enclosure Management Support
- SAS/SATA support
- 24 SATA connectors
Environmentally Friendly
Yes
