SMC-CSE-836E16-R1200B-00
MPN: CSE-836E16-R1200B

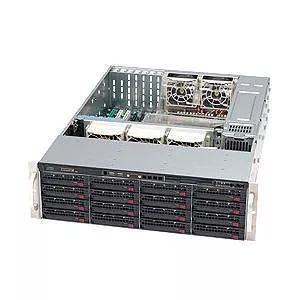

Supermicro CSE-836E16-R1200B 3U 1200W Rackmount Chassis

Highlights
Motherboard Supported:
EATX | ATX
Number of Total Expansion Bays:
16
Product Type:
Server Case
Depth:
25.5
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-836E16-R1200B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
836E16-R1200B
Product Name
SuperChassis 836E16-R1200B Rackmount Enclosure
Product Type
Server Case
Technical Information
Motherboard Supported
  • EATX
  • ATX
    • Number of Fans Installed
    5
    Bays
    Number of External 3.5" Bays
    16
    Number of Total Expansion Bays
    16
    I/O Expansions
    Total Number of Expansion Slots
    7
    Interfaces/Ports
    Total Number of USB Ports
    2
    Power Description
    Number of Power Supplies Installed
    2
    Power Supply Wattage
    1200 W
    Redundant Power Supply
    Yes
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Compatible Rack Unit
    3U
    Form Factor
    Rack-mountable
    Height
    5.2"
    Width
    17.2"
    Depth
    25.5"
    Weight (Approximate)
    72 lb
    Miscellaneous
    Package Contents
    • SuperChassis 836E16-R1200B Rackmount Enclosure
    • 1 x Chassis Accessory Box
    • 1 x 836 Backplane with Single LSI SAS2X28 Expander Chip
    • 1 x 20" 16-pin to 16-pin Round Ribbon Cable
    • 1 x Accessory Box for SC836 with Two Power Cords, NO FDD Acc.
    • 16 x Black Hot-Swappable 3.5" Drive Trays
    • 1 x Black USB/COM Port Tray for SC825 & SC836
    • 1 x Front Control Board (FP836) for SC823M, 825, 825M, 828, 835, 836
    • 1 x 26.5" to 36.4" Rail Set, Quick/Quick, Default for 2U, 3U 17.2" W Chassis
    • 1 x Silver Chassis Handle for SC836
    • 1 x Black DVD Dummy Cover for SC825, 836
    • 1 x Black FDD Dummy Cover for SC836
    • 1 x 24-pin x8 Power Distributor
    • 1 x Square Hole to Round Hole Rail Adapter Set
    • 1 x SC835/836/936 Intel DP X8.X7 PC Air Shroud
    • 1 x Storage Chassis Palliated Shipping Box for SC836,936
