SMC-CSE-835TQ-R920B-00
MPN: CSE-835TQ-R920B

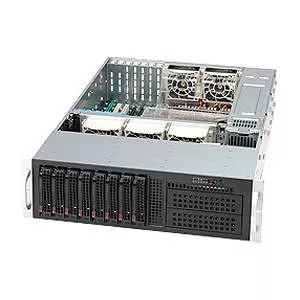

Supermicro CSE-835TQ-R920B SuperChassis SC835TQ-R920B 3U Enclosure - Rack-mountable - Black

Highlights
Motherboard Supported:
EATX
Number of Total Expansion Bays:
11
Product Type:
Server Case
Depth:
25.5
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-835TQ-R920B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC835TQ-R920B
Product Name
SuperChassis SC835TQ-R920B Rackmount Enclosure
Product Type
Server Case
Technical Information
Motherboard Supported
EATX
Number of Fans Installed
5
Bays
Number of External 5.25" Bays
3
Number of External 3.5" Bays
8
Number of Total Expansion Bays
11
I/O Expansions
Total Number of Expansion Slots
7
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
    • Number of Power Supplies Supported
    2
    Number of Power Supplies Installed
    2
    Power Supply Wattage
    920 W
    Redundant Power Supply
    Yes
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Compatible Rack Unit
    3U
    Form Factor
    Rack-mountable
    Height
    5.2"
    Width
    17.2"
    Depth
    25.5"
    Weight (Approximate)
    75 lb
    Miscellaneous
    Package Contents
    • SuperChassis SC835TQ-R920B Rackmount Enclosure
    • 1 x SAS833 Back Panel With AMI MG9072
    • 4 x 2ft. SATA Cable
    • 1 x 20" 16-pin to 16-pin Round Ribbon Cable
    • 5 x 4-pin to 4-pin Middle Fan Power Extension Cable (200mm (PWM))
    • 2 x Black 5.25" Drive Tray Without Rail
    • 8 x Black Hot-swappable SATA Hard Drive Tray
    • 1 x 26.5" to 36.4" Rail Set (Quick/quick, default for 2U, 3U 17.2" W chassis)
    • 1 x Square Hole To Round Hole Rail Adapter Set
    • 1 x Black SC825 FDD Tray Front Cover
    • 1 x FDD Dummy Tray (Support 1 x 3.5" HDD)
    • 1 x 24-pin Redundant Power Distributor
    • 1 x SC835/836/936 Intel DP X8.X7 PC Air Shroud
