SMC-CSE-826BAC4-R920WB-00
MPN: CSE-826BAC4-R920WB

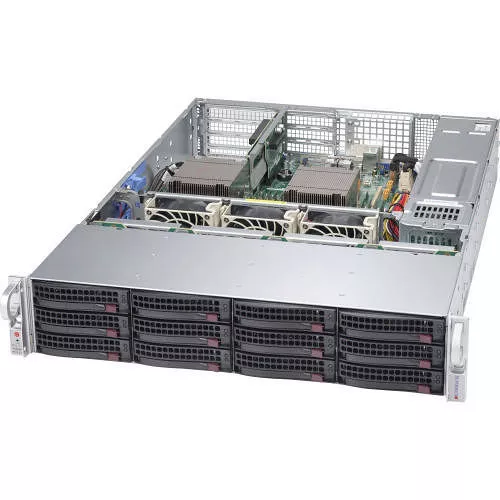

Supermicro CSE-826BAC4-R920WB 2U Rackmount 920W Chassis

Highlights
Motherboard Supported:
ATX | EATX
Number of Total Expansion Bays:
12
Product Type:
Server Case
Depth:
25.5
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-826BAC4-R920WB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
826BAC4-R920WB
Product Name
SuperChassis 826BAC4-R920WB
Packaged Quantity
1
Product Type
Server Case
Technical Information
Motherboard Supported
  • ATX
  • EATX
    • Number of Fans Supported
    8
    Number of Fans Installed
    3
    Installed Fan Size
    3.15"
    Bays
    Number of External 3.5" Bays
    12
    Number of Total Expansion Bays
    12
    I/O Expansions
    Total Number of Expansion Slots
    7
    Power Description
    Power Supply Installed
    Yes
    Number of Power Supplies Installed
    1
    Power Supply Wattage
    920 W
    Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Compatible Rack Unit
    2U
    Form Factor
    Rack-mountable
    Height
    3.5"
    Width
    17.2"
    Depth
    25.5"
    Miscellaneous
    Package Contents
    • SuperChassis 826BAC4-R920WB
    • 1 x 2U Backplane for 3.5
    • 2 x 920W 1U Redundant PWS W/ Quiet Mode
    • 1 x PDB with shorter 24pin and 8pin cables for SC826B
    • 1 x SC825/826/216/213 Intel DP X9,X8 PC air shroud 1368x13/12x13
    • 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    • 1 x 4 pin to 4 pin power extension .HDD to RA,40cm. 20AWG
    • 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
    • 1 x 16 pin control panel converter cable for SC826,846, 22cm, PBF
    • 3 x 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
    • 1 x Front panel adaptor board (TB826) forSC826,213,216,219
    • 1 x Front control board Dual color LED(FP826-D)forSC826,213,216,219
    • 12 x Black gen 5.5 hot-swap 3.5"" HDD tray
    • 1 x 826B/216B rear dummy cover for 2 X 2.5"" HDD cage
    • 1 x Rail screw bag
    • 1 x Rail set, quick/quick, default for 2,3U 17.2""W
    • 1 x SC826B, 216B WIO rear window
