MPN: CSE-826BAC4-R1K23LPB

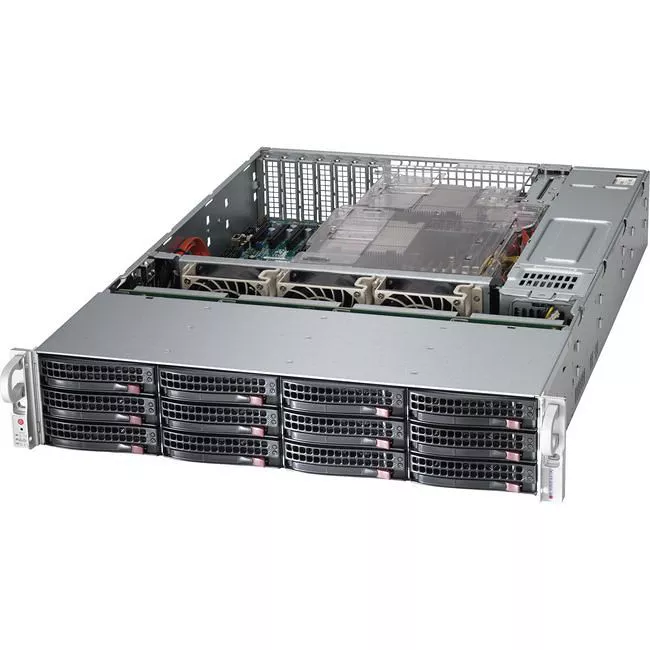

Supermicro CSE-826BAC4-R1K23LPB SuperChassis 826BAC4-R1K23LPB 2U Chassis
Highlights
Motherboard Supported:
ATX | EATX | EE-ATX
Number of Total Expansion Bays:
12
Product Type:
Server Case
Depth:
25.5
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-826BAC4-R1K23LPB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
SC826BAC4-R1K23LPB
Product Name
SuperChassis 826BAC4-R1K23LPB
Product Type
Server Case
Technical Information
Motherboard Supported
Number of Fans Supported
8
Number of Fans Installed
3
Installed Fan Size
3.15"
Bays
Number of External 3.5" Bays
12
Number of Total Expansion Bays
12
I/O Expansions
Total Number of Expansion Slots
7
Power Description
Power Supply Installed
Yes
Power Supply Wattage
1200 W
Physical Characteristics
Color Family
Black
Product Color
Black
Compatible Rack Unit
2U
Form Factor
Rack-mountable
Height
3.5"
Width
17.2"
Depth
25.5"
Weight (Approximate)
40 lb
Miscellaneous
Package Contents
- 1 x SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
- 1 x 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 3 x 80x80x38 mm, 10.5K RPM, Optional Middle Cooling Fan for X10 2U Ultra and HFT Series Servers,RoHS/REACH
- 12 x Black gen 5.5 hot-swap 3.5"; HDD tray
- 1 x PDB with longer 24pin for SC826B
- 2 x AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
- 1 x Rail set, quick/quick, default for 2,3U 17.2";W
- 1 x 216B/826B LP rear window,RoHS/REACH,PBF
Country of Origin
United States
Warranty
Limited Warranty
3 Year
