SMC-CSE-815TQ-R500CB-00
MPN: CSE-815TQ-R500CB

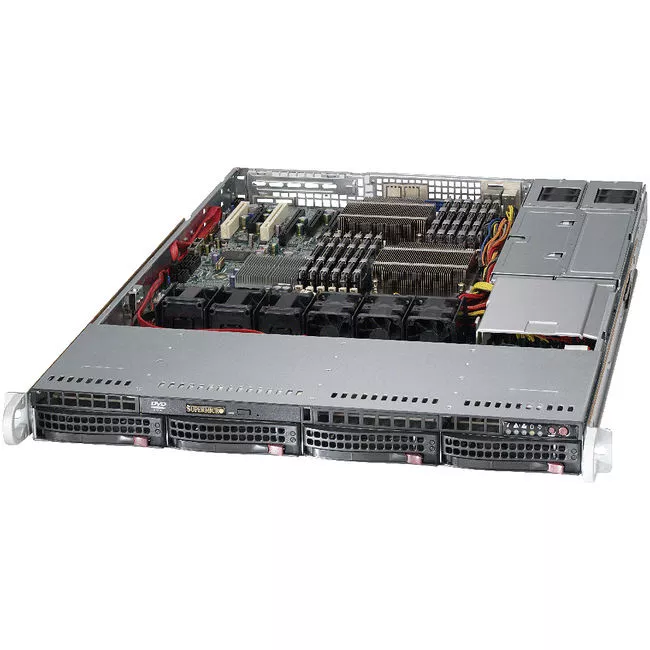

Supermicro CSE-815TQ-R500CB SuperChassis 815TQ-R500CB System Cabinet


Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-815TQ-R500CB
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
815TQ-R500CB
Product Name
SuperChassis 815TQ-R500CB System Cabinet
Product Type
Server Case
Technical Information
Motherboard Supported
EATX
Number of Fans Installed
3
Bays
Number of External 5.25" Bays
1
Number of External 3.5" Bays
4
Number of Total Expansion Bays
5
I/O Expansions
Number of Total Expansion Slots
1
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
  • Number of Power Supplies Supported
    2
    Number of Power Supplies Installed
    2
    Power Supply Wattage
    500 W
    Redundant Power Supply
    Yes
    Physical Characteristics
    Product Color
    Black
    Compatible Rack Unit
    1U
    Form Factor
    Rack-mountable
    Height
    1.7"
    Width
    17.2"
    Depth
    25.6"
    Miscellaneous
    Package Contents
    • SuperChassis 815TQ-R500CB System Cabinet
    • 1 x Backplane
    • 1 x SATA Set of 4-70/59/48/38cm Round Cable S-RA, PBF
    • 1 x 8pin to 8pin Ribbon Cable with Tube for SGPIO, 40cm, PBF
    • 1 x SC112 24pin Redundant Power Distributor
    • 1 x Round 16 to 16pin Ribbon FP Cable 30" (76cm)
    • 1 x Black DVD Dummy Cover for SC813, 813M, 815, PBF-RoHS
    • 1 x Front Control Board Dual Color for SC815,SC813M (C)
    • 1 x Fan Holder for Six 40X56mm Counter Rotating Fans
    • 3 x Dummy Fan 40x56mm for SC815T (cost-effective)
    • 4 x Black 3.5" HDD Trays
    • 1 x 1U I/O Shield for X8 Server MB (3rd LAN + 4xLAN)
    • 1 x Inner Rail, Extension, Screw Type
    • 1 x Inner Rail, Front, Screw Type
    • 1 x Outer Rail, Screw Type
    • 1 x STD Rear Window for SC113 Redundant PWS
