SMC-CSE-745TQ-920B-00
MPN: CSE-745TQ-920B

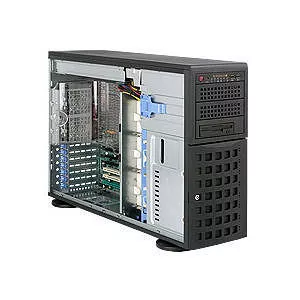

Supermicro CSE-745TQ-920B SuperChassis 745TQ-920B Rackmount Enclosure

Highlights
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-745TQ-920B
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
745TQ-920B
Product Name
SuperChassis 745TQ-920B Rackmount Enclosure
Product Type
Server Case
Technical Information
Motherboard Supported
  • ATX
  • EATX
    • Number of Fans Installed
    5
    Bays
    Number of External 5.25" Bays
    3
    Number of External 3.5" Bays
    8
    Number of Total Expansion Bays
    11
    I/O Expansions
    Number of Total Expansion Slots
    7
    Interfaces/Ports
    Total Number of USB Ports
    2
    Front USB
    Yes
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • 12 V DC
    • Number of Power Supplies Installed
    1
    Power Supply Wattage
    920 W
    Physical Characteristics
    Product Color
    Black
    Compatible Rack Unit
    4U
    Form Factor
    Rack-mountable
    Height
    17.2"
    Width
    7"
    Depth
    25.5"
    Miscellaneous
    Package Contents
    • SuperChassis 745TQ-920B Rackmount Enclosure
    • 1 x SAS / SATA Hard Drive Backplane with AMI MG9072 Chip
    • 1 x Front Bezel Filter
    • 4 x SATA Cable (2 Ft, Amphenol)
    • 1 x 6" Split Converter Cable
    • 1 x Front Panel Ribbon Cable
    • 1 x 8-pin to 8-pin Ribbon Cable for SGPIO (Supports Up to 4 Drives)
    • 1 x Power Cord
    • 3 x 4 to 4-pin middle fan power extension cable, 200mm (PWM)
    • 8 x Black hot-swap 3.5" HDD trays
    • 1 x 24-pin redundant power distributor
    • 1 x Power supply dummy cover (131x40x76mm) for 700W/800W/900W
    • 1 x SC745 Intel DP X8.X7 PC Air Shroud
    Environmentally Friendly
    Yes
