MPN: CSE-515-505

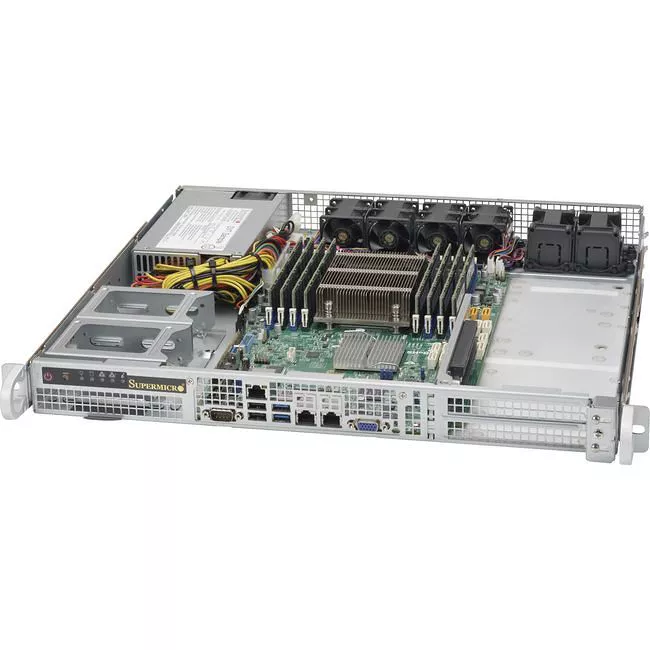

Supermicro CSE-515-505 SuperChassis 515-505 - 1U Server Case
Highlights
Specifications
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-515-505
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
515-505
Product Name
SuperChassis 515-505
Packaged Quantity
1
Product Type
Server Case
Technical Information
Number of Fans Supported
6
Number of Fans Installed
4
Installed Fan Size
1.57"
Bays
Number of Internal 3.5" Bays
1
Number of External 2.5" Bays
4
Number of Total Expansion Bays
5
I/O Expansions
Number of Total Expansion Slots
2
Power Description
Power Supply Installed
Yes
Number of Power Supplies Installed
1
Power Supply Wattage
500 W
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
17.2"
Depth
16.9"
Miscellaneous
Package Contents
- SuperChassis 515-505
- 1 x Power Supply
- 1 x Front Control Cable Round 16 pin to 16 pin Ribbon, 65cm. 28AWG
- 1 x NEMA5-15P to C13 US Power Cord 16AWG 6ft, PBF (Default for High Watt)
- 4 x 40x40x56 mm 13K-11K RPM Counter-rotating Fans w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
- 1 x Front Control Board (FP512) for SC512 (Surface-mounted LED)
- 3 x SC818G 2x 4056 Fan Trays,HF,RoHS,PBF
- 2 x Dummy Fans 40x56mm for 40x56 Counter-rotating Fans (Cost-effective)
- 1 x Set Outer Rail, Quick-release Type, 25.6
- 1 x Set Inner Rail, Front, Short, Quick-release Type
- 1 x Rear Window for SC515 Single PWS Chassis
Warranty
Limited Warranty
1 Year
