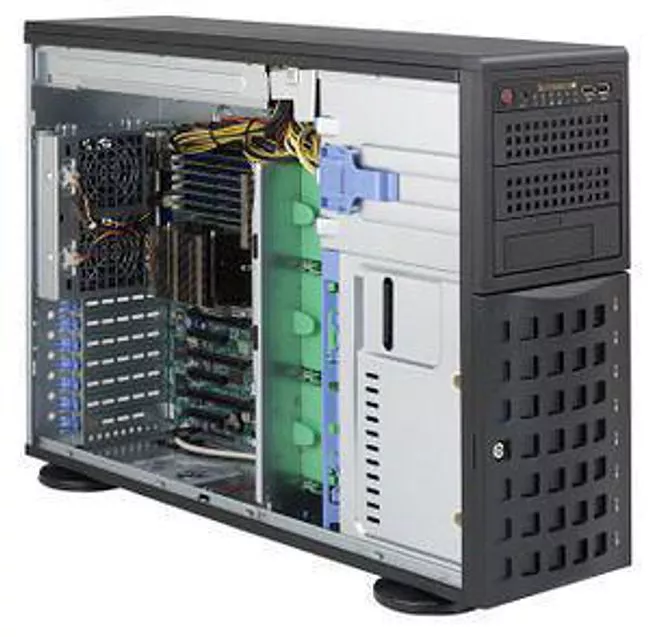

Supermicro AS-4023S-TRT 4U Tower/Rack Barebone - AMD EPYC 7000-series Processors - 2X Socket SP3



  • Mfr Part Number: AS-4023S-TRT
  • Motherboard: H11DSi-NT
  • Processor: Socket SP3
    • Support Dual AMD EPYC 7000-series Processors
    • Support Up to 32 Cores
  • Chipset: System on Chip (SoC)
  • Memory: 16x 240pin DDR4-2666 DIMM Slots, 8 Channel, Supports up to 2TB ECC/REG Memory
  • Slots: 2x PCI-Express x16 Slots, 3x PCI-Express x8 Slot
  • SATA: 10x SATA3 Ports
  • SAS: 8x SAS3 ports support via optional Add-on Card
  • Video: ASPEED AST2500 BMC Graphics
  • LAN: 2x Intel X550 10GBase-T Ethernet Controllers, 1x Realtek RTL8211E PHY (dedicated IPMI)
  • Drive Bays: 8x 3.5" Hot-swap SAS3/SATA3 Drive Bays, 3x 5.25" Peripheral Drive Bays
  • Backplane: Supports 8 SATA3 or 8 SAS3 HDD
  • Ports: 2x USB 3.0 Ports (rear), 2x USB 2.0 Ports (rear), 1x VGA Port, 2x RJ45 10G LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: 4U Rackmount / Tower
  • Power Supply: 1280W 80 PLUS Platinum Certified Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
  • System Cooling: 3x internal hot-swap 9400 RPM fans, 2x external rear hot-swap 9400 RPM fans
  • Front Panel:
    • Buttons: Power On/Off, System Reset
    • LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail, UID
  • Color: Black
  • Dimensions (WxDxH): 7.0 x 25.5 x 17.8 inch / 178.0 x 647.0 x 452.0 mm
  • RoHS Compliant
