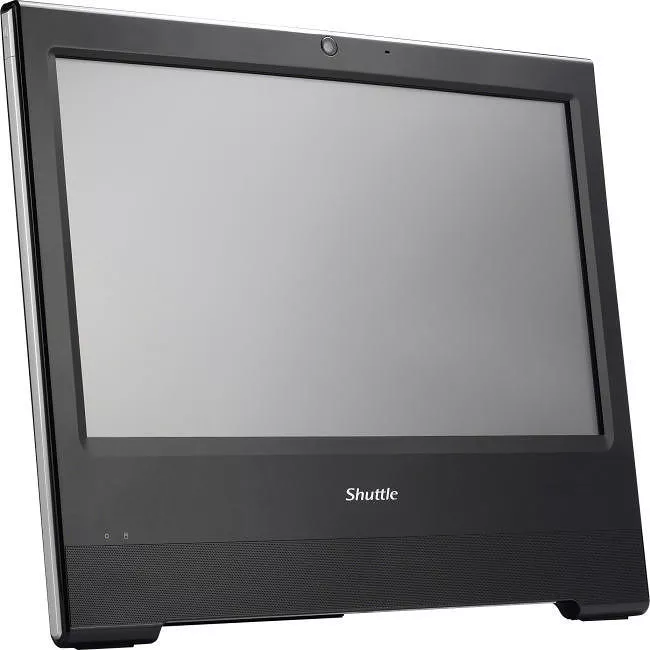

Shuttle X50V5 BLACK All-in-One - Intel Celeron 3855U 1.60 GHz DDR3L SDRAM - 15.6" Touchscreen

A Fanless All-in-one PC for business solutions

Shuttle's X50V5 with 15.6-inch touch screen is powered by Intel® Celeron® 3855U dual-core processor. This All-in-One PC is made to drive KIOSK, POS, POI, and queuing systems. Shuttle's stylish AIO is VESA mountable and is easily mounted on the wall or propped up with a stand. The X50V5 front panel features IP54 design which is dust-protected and protected from splashing of water. Thanks to its fanless design, the X50V5 has been approved for 24/7 nonstop operation and tested to ensure long-term stability and silent operation. In addition, the X50V5 offers a PCL71 accessory (RS232, RS232/RS422/RS485, and parallel port) and a POS01 accessory (RS232, RS232/RS422/RS485, Parallel Port, and DIO port) easily to connect with cash drawers, bar code scanners, and other peripheral devices.

The 16:9 15.6 single touch screen does not require a mouse and keyboard, making it particularly suitable for interactive kiosk and point-of-sale applications.

Intel® Celeron® dual-core processor

The X50V5 supports the latest Intel® Skylake-U platform technology. It is equipped with an Intel® Celeron® 3855U 1.6Ghz dual-core processor with max TDP of 15W, memory frequency support for up to DDR3L-1600, and built-in Intel® HD Graphics to play Full HD/1080P contents.

Fanless design

The unique fanless design eliminates the power consumption required by a fan as well as the cost of replacing fans. Use solid-state disks and create a noise-free operational platform.

24/7 Certified

Made with high quality material and Shuttle exclusive heat pipe cooling technology, the X50V5 is approved for 24/7 nonstop operation to keep things cool for long-term operation.

Support wire and wireless high-speed networks

The X50V5 has one built-in Intel® Gigabit LAN interface and Realtek RTL 8821AE b/g/n/a and BT combo wireless network card. Transmission rates reach up to 433.3 Mbps for significantly enhanced data transfer efficiency and operation speeds. It also supports Wake On LAN function so that users can turn on the X50V5 from the sleep mode, rest mode, or when powered off via the internet.

Internal USB port - Theft Protection

Internal USB ports ensure theft protection as USB connected devices are guarded within the chassis. In addition to the USB ports at the front and back panel, the X50V5 provides one USB 2.0 port inside the chassis so users can install a USB TV tuner, USB 3G Module, or other USB expanders.

Supports Power on by RTC

Enter BIOS to set up the Power on by RTC function that allows you to set a time to boot up the computer and to turn off with the Windows task scheduler. This feature means saving electricity and energy as well as eliminating the cost of on-site service.

VESA Mount

Remove the stand at the rear of X50V5 and the device is VESA compatible for a variety of commercial applications.

IP54 design

The X50V5 front panel is IP54 certified for dust and splash water resistance. It can be used for those indoor applications, where the touch screen may be exposed to humidity and occasional splashing of water.

Support three independent displays

The rear panel of X50V5 provides HDMI and D-sub video outputs, which can be connected to the other two monitors to support three independent displays. Use an adaptor to convert HDMI into DVI for diversified signal selection.
