SSC-SS-600ET-00
MPN: SS-600ET

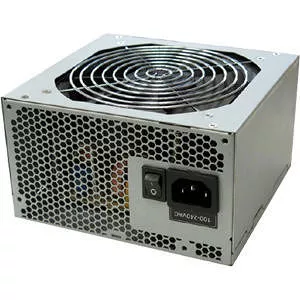

SeaSonic SS-600ET ATX12V & EPS12V 600 W Power Suply

Highlights
General Information
Manufacturer
Sea Sonic Electronics Co., Ltd
Manufacturer Part Number
SS600ET
Manufacturer Website Address
http://www.seasonicusa.com
Brand Name
Seasonic
Product Model
SS-600ET
Product Name
SS-600ET ATX12V & EPS12V Power Suply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
82%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Power
  • Output Short Circuit
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Current
  • 24 A
  • 46 A
  • 800 mA
  • 2.50 A
    • Output Power
    600 W
    Interfaces/Ports
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4-pin ATX12V Motherboard
  • 1 x 4+4pin EPS12V Motherboard
  • Serial ATA
  • SP4 Floppy Drive
  • LP4 Peripheral Device
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.5"
    Depth
    5.9"
    Miscellaneous
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Bronze
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

    • Specifications
