ABOUT

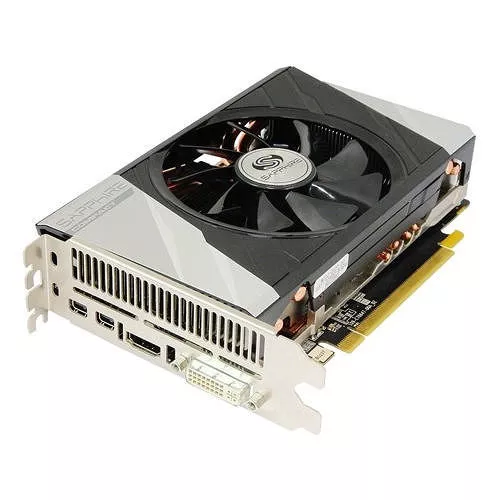

Developed specially for small form factor PC systems, this model features a shorter PCB, measuring only 171mm long, and an efficient heatpipe cooler with a single fan. Sharing the same GCN core as the Dual-X models, the ITX Compact is no slouch with core clocks of 928MHz and memory clocks of 1375MHz (5.5GB/s effective).
See More
SPECIFICATIONS
General Information
Manufacturer
Sapphire, Inc
Manufacturer Part Number
11235-06-20G
Manufacturer Website Address
http://www.sapphiretech.com
Brand Name
Sapphire
Product Name
Radeon R9 285 ITX COMPACT OC Edition (UEFI) Graphic Card
Product Type
Graphic Card
Technical Information
Maximum Resolution
4096 x 2160
Analog Signal
Yes
Digital Signal
Yes
API Supported
Number of Monitors Supported
4
Features
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Line
Radeon
Chipset Series
R9 200
Chipset Model
R9 285
GPU Clock
928 MHz
Number of Stream Processors
1792
Memory
Standard Memory
2 GB
Memory Speed
5500 MHz
Memory Technology
GDDR5
Bus Width
256 bit
Interfaces/Ports
HDMI
Yes
Number of HDMI Outputs
1
DVI
Yes
Total Number of DVI Outputs
1
Dual Link DVI Supported
Yes
Mini DisplayPort
Yes
Number of Mini DisplayPort Outputs
2
Software
Software Included
TriXX Utility
Physical Characteristics
Slot Space Required
Dual
Form Factor
Plug-in Card
Cooler Type
Fan Cooler
Height
1.4"
Width
4.3"
Length
6.7"
Miscellaneous
Package Contents
- Radeon R9 285 ITX COMPACT OC Edition (UEFI) Graphic Card
- DVI to VGA Adapter
- Mini-DP to DP Cable
- 1 x 8 Pin to 6 Pin x2 Power Adaptor
- Driver CD
System Requirements
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
- 4096 MB Minimum of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
- 500 Watt Power Supply is required
- 850 Watt Power Supply is recommended for CrossFireX System
- 1X150 Watt 8-pin PCI Express power connector is required
- 2X150 Watt 8-pin PCI Express power connector is required for CrossFireX system
Platform Supported
PC
