Highlights:
  • Standard Memory: 4 GB
  • HDMI: Yes
  • GPU Clock: 1 GHz
  • Number of Monitors Supported: 4
Contact sales for pricing

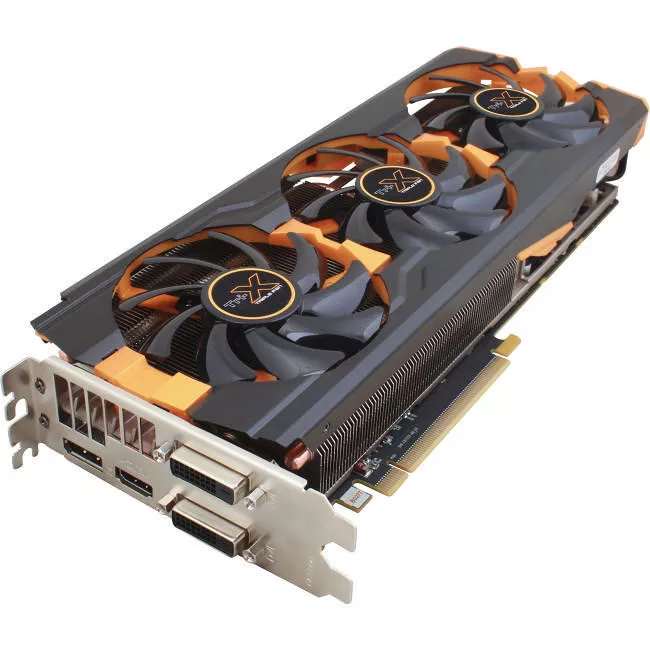

The new SAPPHIRE R9 290 Tri-X 4GB OC features the latest GCN (graphics core next) architecture from AMD with 2560 stream processing units and an enhanced engine clock of up to 1000Mhz. It is equipped with 4GB of the latest high performance GDDR5 memory on a 512-bit interface and now clocked at 1300 MHz (5.2GHz effective) delivering higher bandwidth than earlier models.The new SAPPHIRE R9 290 Tri-X 4GB OC is built on a SAPPHIRE original pcb design with the power design upgraded to a 6-phase VDDC power design. Two 8-pin power connectors ensure adequate system power is available (up to 375 Watts total including PCI-Express power).
General Information
Manufacturer
Sapphire, Inc
Manufacturer Part Number
11227-13-20G
Manufacturer Website Address
http://www.sapphiretech.com
Brand Name
Sapphire
Product Name
TRI-X Radeon R9 290 OC(UEFI) Graphic Card
Product Type
Graphic Card
Technical Information
Digital Signal
Yes
API Supported
  • DirectX 12
  • OpenGL 4.3
  • Mantle
  • OpenCL
  • Number of Monitors Supported
    4
    Features
  • Avivo HD Technology
  • Graphics Core Next (GCN)
  • Eyefinity 2.0
  • TrueAudio Technology
  • Enhanced Unified Video Decoder 3 (UVD3)
  • HD Media Accelerator
  • PowerTune Technology With Boost
  • PowerTune Technology
  • Processor & Chipset
    Chipset Manufacturer
    AMD
    Chipset Line
    Radeon
    Chipset Series
    R9 200
    Chipset Model
    R9 290
    GPU Clock
    1 GHz
    Number of Stream Processors
    2560
    Memory
    Standard Memory
    4 GB
    Memory Speed
    5200 MHz
    Memory Technology
    GDDR5
    Bus Width
    512 bit
    Interfaces/Ports
    DisplayPort
    Yes
    Number of DisplayPort Outputs
    1
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DVI
    Yes
    Total Number of DVI Outputs
    2
    Dual Link DVI Supported
    Yes
    Physical Characteristics
    Slot Space Required
    Dual
    Form Factor
    Plug-in Card
    Cooler Type
    Fan Cooler
    Height
    1.5"
    Width
    4.4"
    Length
    12"
    Miscellaneous
    System Requirements
    • PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
    • 4096MB Minimum of system memory
    • Installation software requires CD-ROM drive
    • DVD playback requires DVD drive
    • Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
    • 750 Watt Power Supply is required
    • 2X150 Watt 8-pin PCI Express power connector is required
    • 4X150 Watt 8-pin PCI Express power connector is required for CrossFireX system
    • 64-bit operating system highly recommended
    • A display with digital input (HDMI, DisplayPort or DVI) is required
    Platform Supported
    PC
