ABOUT
Packed with the latest GPU technologies, the Radeon HD 6450 graphics processor is a next-generation visual upgrade that delivers Eyefinity multi-display technology, HDMI 1.4a for stereoscopic (3D) displays, Displayport 1.2 as well as 2nd generation support for DirectX 11 for the most versatile solution for everyday computing.
See More
SPECIFICATIONS
General Information
Manufacturer
Sapphire, Inc
Manufacturer Part Number
100322L
Manufacturer Website Address
http://www.sapphiretech.com
Brand Name
Sapphire
Product Model
100322L
Product Name

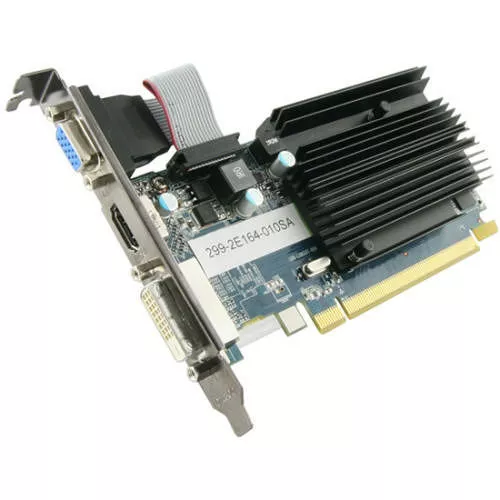

Radeon HD 6450 Graphics Card
Product Type
Graphic Card
Technical Information
RAMDAC Speed
400 MHz
Maximum Resolution
2560 x 1600
Analog Signal
Yes
Digital Signal
Yes
API Supported
Shader Model
5.0
HDCP Supported
Yes
Processor & Chipset
Chipset Manufacturer
ATI
Chipset Line
Radeon
Chipset Series
HD 6000
Chipset Model
HD 6450
GPU Clock
625 MHz
Number of Stream Processors
160
Memory
Standard Memory
1 GB
Memory Speed
1334 MHz
Memory Technology
DDR3 SDRAM
Bus Width
64 bit
Interfaces/Ports
Host Interface
PCI Express 2.0 x16
HDMI
Yes
Number of HDMI Outputs
1
VGA
Yes
Number of VGA Outputs
1
DVI
Yes
Total Number of DVI Outputs
1
Dual Link DVI Supported
Yes
Software
Software Included
Driver
Physical Characteristics
Form Factor
Plug-in Card
Cooler Type
Passive Cooler
Height
3.7"
Thickness
866.1 mil
Length
5.7"
Miscellaneous
Package Contents
- Radeon HD 6450 Graphics Card
- CD
System Requirements
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
- 400 Watt Power Supply is required
- Certified power supplies are recommended
- 1024 MB Minimum of system memory
- Installation software requires CD-ROM drive
- DVD playback requires DVD drive
- Blu-ray / HD DVD playback requires Blu-ray / HD DVD drive
- For best cooling performance, a chassis installed with at least one 120mm or 90mm fan is required
Operating System(s):
- Windows 7
Platform Supported
PC
Warranty
Limited Warranty
2 Year
