Highlights:
  • Maximum Resolution: 1024 x 768
  • Brightness: 250 Nit
  • Contrast Ratio: 500:1
  • Platform Supported: PC | Mac
Contact sales for pricing

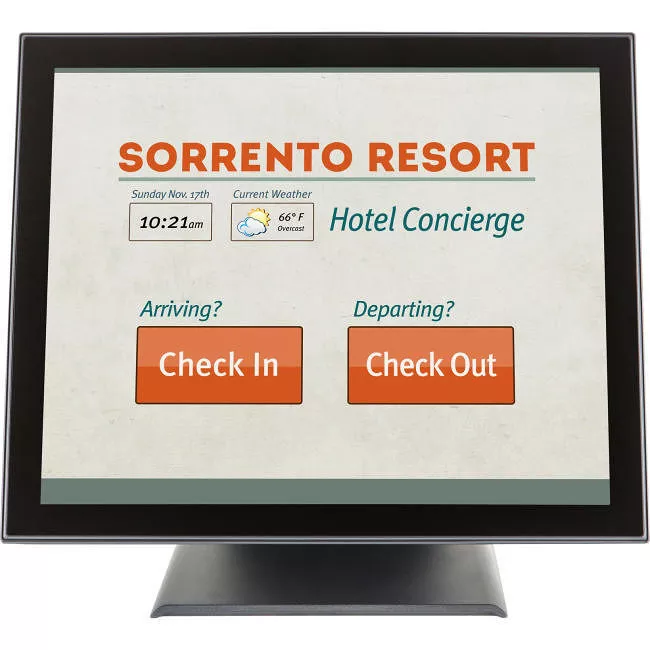

For image-conscious retail, hospitality or healthcare applications, the Planar® PT1545P 15 touch screen monitor is optimzed with multi-touch interactivity for space-constrained settings. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience.
General Information
Manufacturer
Leyard
Manufacturer Part Number
997-7413-00
Manufacturer Website Address
http://www.planar.com
Brand Name
Planar
Product Model
PT1545P
Product Name
15" Touch Screen Monitor
Product Type
LCD Touchscreen Monitor
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA-2
Response Time
8 ms
Aspect Ratio
4:3
Horizontal Viewing Angle
140°
Vertical Viewing Angle
125°
Adjustable Display Angle
Yes
Mount Type
  • Wall Mountable
  • Arm-mountable
  • Backlight Technology
    Edge LED
    Tilt Angle
    -5°to90°
    Features
    Security Lock
    Horizontal Frequency
    60 kHz
    Video
    Maximum Resolution
    1024 x 768
    Standard Refresh Rate
    75 Hz
    Color Supported
    16.7 Million Colors
    Contrast Ratio
    500:1
    Brightness
    250 Nit
    Audio
    Speakers
    Yes
    Touchscreen Information
    Touchscreen
    Yes
    Touchscreen Type
    Projected Capacitive
    Multi-touch Screen
    Yes
    Interfaces/Ports
    USB
    Yes
    VGA
    Yes
    Power Description
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Operating Power Consumption
    25 W
    Standby Power Consumption
    3 W
    Off-Mode Power Consumption
    1 W
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    100 x 100
    Height
    10.9"
    Width
    13.8"
    Depth
    2.5"
    Height with Stand
    12.10"
    Width with Stand
    13.80"
    Depth with Stand
    8"
    Weight (Approximate)
    6.40 lb
    Weight with Stand (Approximate)
    9.90 lb
    Miscellaneous
    Package Contents
    • 15" Touch Screen Monitor
    • Power Cord
    • VGA Cable
    • USB Cable (A to B)
    • Audio-in Cable
    • User's Guide
    • Quick Start Guide
    Certifications & Standards
    • UL/c-UL
    • FCC-Class B
    • CE
    Platform Supported
  • PC
  • Mac
  • Environmentally Friendly
    Yes
    Environmental Certification
    RoHS 2
    Warranty
    Limited Warranty
    3 Year
