ABOUT

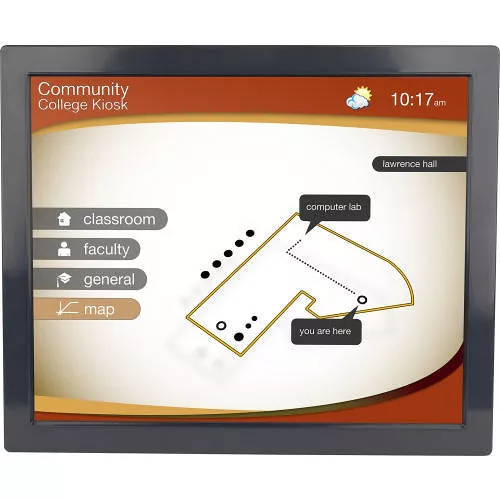

The Planar® LA1500R is a 15" open frame non-touch monitor. The Planar LA1500R delivers a cost-effective display solution for OEM's and integrators to easily integrate into kiosk enclosures.
See More
SPECIFICATIONS
General Information
Manufacturer
Leyard
Manufacturer Part Number
997-5803-02LF
Manufacturer Website Address
http://www.planar.com
Brand Name
Planar
Product Series
LA
Product Model
LA1500R
Product Name
LA1500R Open Frame Display
Product Type
Open-frame LCD Monitor
Technical Information
Number of Screens
1
Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare
Response Time
8 ms
Horizontal Viewing Angle
160°
Vertical Viewing Angle
160°
Mount Type
Video
Maximum Resolution
1024 x 768
Standard Refresh Rate
75 Hz
Contrast Ratio
600:1
Brightness
250 Nit
Interfaces/Ports
VGA
Yes
Power Description
Input Voltage
Operating Power Consumption
30 W
Standby Power Consumption
2 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
75 x 75
Color
Black
Height
10.6"
Width
14.2"
Depth
1.8"
Weight (Approximate)
7.90 lb
Miscellaneous
Package Contents
- LA1500R Open Frame Display
- Mounting Brackets
Certifications & Standards
- UL
- FCC-B
- CE-B
Platform Supported
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
See More
