ABOUT

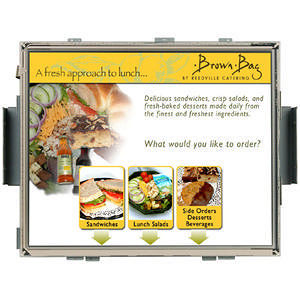

The 17" LA1710R open-frame monitor is designed to be easily integrated into kiosks for retail, ticketing or hospitality applications. The LA1710R offers all the advantages of Planar's award-winning desktop LCD monitors in an open-frame style. Fully warranted the LA1710R is ideal for integrators and OEMs.
See More
SPECIFICATIONS
General Information
Manufacturer
Leyard
Manufacturer Part Number
997-2808-01LF
Manufacturer Website Address
http://www.planar.com
Brand Name
Planar
Product Model
LA1710R
Product Name
LA1710R Open-frame LCD Monitor
Package Type
OEM
Product Type
Open-frame LCD Monitor
Technical Information
Number of Screens
1
Screen Size
17"
Screen Mode
SXGA
Response Time
5 ms
Pixel Pitch
10.4 mil
Horizontal Viewing Angle
160°
Vertical Viewing Angle
160°
Adjustable Display Angle
Yes
Video
Maximum Resolution
1280 x 1024
Standard Refresh Rate
75 Hz
Contrast Ratio
1,000:1
Brightness
350 Nit
Interfaces/Ports
DVI
Yes
VGA
Yes
Power Description
Input Voltage
Operating Power Consumption
60 W
Standby Power Consumption
2 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
12.4"
Width
16.5"
Depth
2.2"
Weight (Approximate)
10.14 lb
Miscellaneous
Package Contents
- LA1710R Open-frame LCD Monitor
- Mounting Brackets
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
1 Year
See More
