MPN: OSS-PCIE3-4UV-10-2-1M

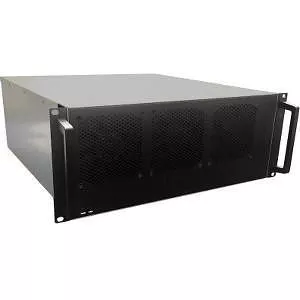

One Stop Systems OSS-PCIE3-4UV-10-2-1M 4U Value GPU Accelerator System
Highlights
Product Type:
Expansion Chassis
Depth:
18.5
Product Type:
Expansion Chassis
Condition:
New
About
Specifications
This 10 slot rackmount expansion platform provides GPU expansion at a value price.
The 4UV supports 2 PCIe 3.0 x16 host connections to 10 PCIe 3.0 x16 slots with two 1m cables to the host server. The system supports 8 double width GPUs or 10 single slot GPUs or add-in boards. Two fan choices allow for high-power GPU cooling up to 300W per GPU or a set-and-forget manual speed control using PWM fans when lower power GPUs or add-in cards are used. Two 2000W power supplies provide up to 4000W of usable power to the GPU accelerator system.
Features:
- 4U rackmount design
- 10 PCIe 3.0 x16 expansion slots
- Two PCIe 3.0 x16 host connections
- Two PCIe 1m cables
- Tach and PWM fan options
- Two 2000W load-sharing power supplies
- Eight EPS12V PCIe power connectors
