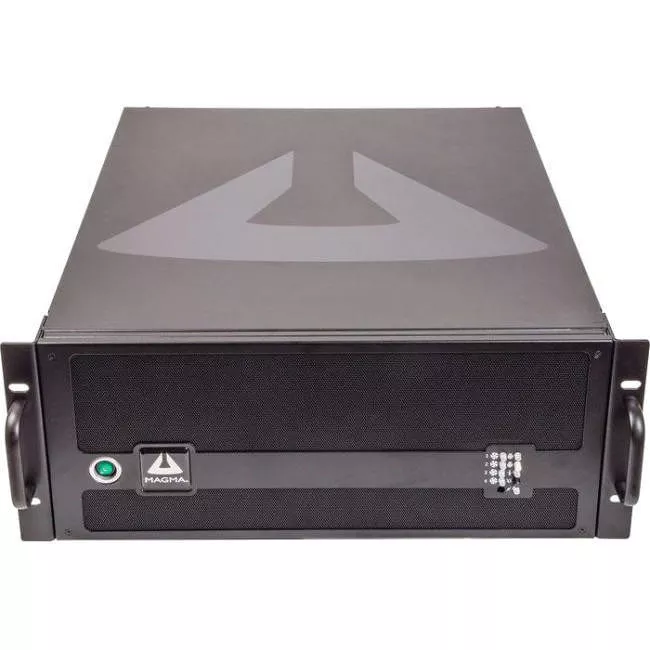

One Stop Systems EB3600-P Multi-GPU Gen 3 PCIe Expansion Chassis w/Partitioned Four Host Backplane

ExpressBox 3600-P ('-P' for Partitioned) provides flexibility for High Performance Computing (HPC) applications by partitioning the PCIe expansion switching into four independent domains that can be connected to one, two, three, or four independent hosts. All PCIe resources share one common chassis for N+1 redundant power and cooling to minimize cost.

The EB3600 is optimized for server class applications and supports a variety of server class GPUs. Power and cooling are designed for up to 300W per GPU. Cooling is designed to support passive cooled GPUs. All critical components are hot swappable and designed for RAS applications. The EB3600 includes Magma's Express I/O management for system control, monitoring and alarming.

Expand the Power of your Workstation

• EB3600-P: Eight total peripherals; one to four hosts
• PCIe Gen 3 x16 (128Gbps) for all connections
• Optimized for server class (passively coded) GPUs
• Magma Express I/O System Management is included in all configurations

Benefits:

• Design optimized for GPU applications - concentrate your HPC investment in a chassis that will support full GPU performance utilization
• Each partition supports better ratio of Peripheral:Host connection of 2:1
• Low-profile host card allows for easy installation into low-profile computers
• Supports peer-to-peer transfers between cards in the expansion chassis to provide full bandwidth potential among I/O cards
• Supports daisy-chaining of fan-out configuration of multiple expansion chassis

Features:

• Dedicated connectivity for up to four independent hosts
• Passive host interface; no PCIe switch on host link cards provides lowest latency possible
• Two 1200W/1500W hot swappable power supplies provided standard. Up to two more can be configured, for support of up to 4800W/6000W
• Direct flow through air cooling is provided for passively cooled server class GPUs
