OSS-EB3450-00
MPN: EB3450

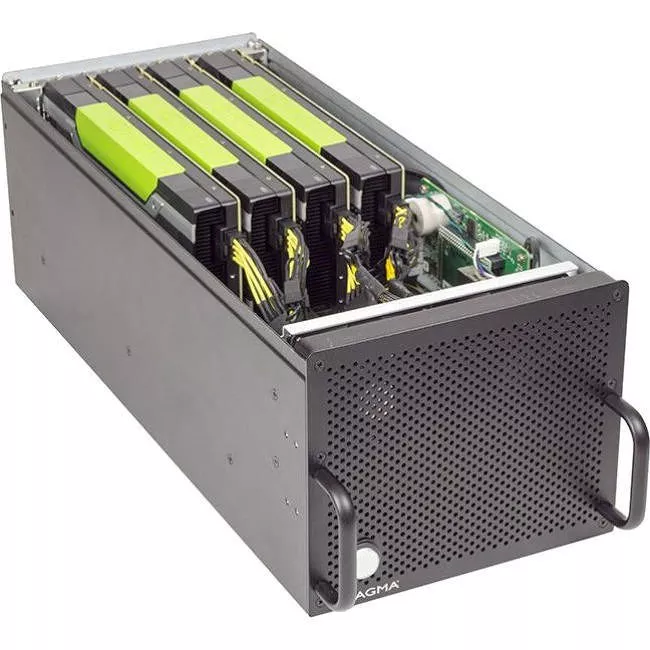

One Stop Systems EB3450 EXPRESSBOX 3450 HPC Five Slot Gen 3 Modular Expansion Chassis

Highlights

HPC Five Slot Gen 3 Modular Expansion Chassis

The ExpressBox 3450 is the perfect chassis for accelerating workstations and servers with GPUs in size restricted applications. Compact and powerful, the EB3450 can house four double-wide GPUs with an additional single-wide slot for other peripherals.

Magma's ExpressBox 3450 provides optimal GPU and other HPC peripheral expansion to existing host computer systems. Designed to support full Gen 3 x16 PCIe connectivity to all devices, the EB3450 is a perfect companion to both workstations and servers. Up to four double wide (e.g. GPU) and one single wide PCIe devices are supported through expansion.

The EB3450 supports fan speed control which allows the support of a variety of peripherals including workstation class GPUs for quiet deskside HPC. The EB3450 is ideal for media and entertainment, oil and gas exploration, finance, simulation and virtualization. Server class GPU devices are supported with higher airflow for data center applications. The EB3450 includes Magma's Express I/O for system control, monitoring and alarming.

Expand the Power of your Workstation

  • Accommodates 4 double wide GPUs and one single wide peripheral
  • PCIe Gen 3 x16 (128Gbps) for all connections
  • Supports both workstation and server class GPUs
  • Designed for HPC peripherals (SSDs and GPUs)
  • Rack shelf and desktop compatible

Benefits:

  • Design optimized for GPU applications - concentrate your HPC investment in a chassis that will support full GPU performance utilization
  • Low-profile host card allows for easy installation into low-profile computers
  • Supports peer-to-peer transfers between cards in the expansion chassis to provide full bandwidth potential among I/O cards
  • Supports daisy-chaining of fan-out configuration of multiple expansion chassis
Features:
  • Passive host interface; no PCIe switch on host link cards provides lowest latency possible
  • Two 1200W/1500W hot swappable power supplies standard
  • Direct flow through air cooling for maximum cooling efficiency with fan speed control
