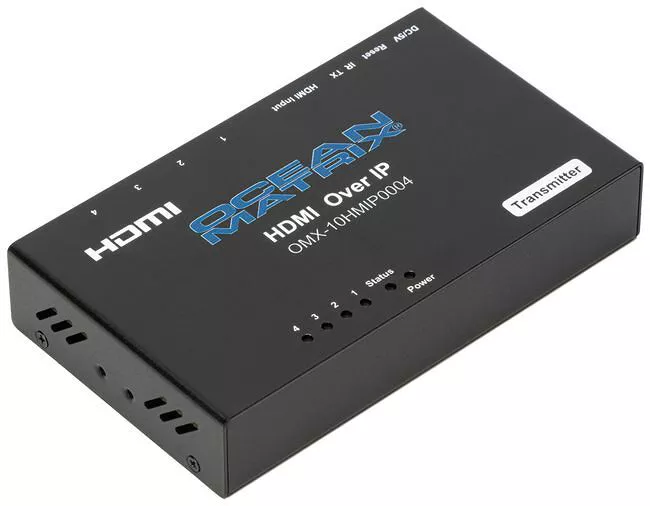

Ocean Matrix OMX-10HMIP0004 Video Extender Transmitter
Ocean Matrix OMX-10HMIP0004 1080p HDMI Over IP 1x4 Extender/Splitter Transmitter ONLY
Extend 1080p@60Hz HDMI over ethernet the easy way with the Ocean Matrix 10HMIP0004 transmitter. It's an HDMI Extender and Splitter in one giving you four RJ45 output ports on both the transmitter and receiver units. The Ocean Matrix 10HMIP0004 supports LPCM 2 channel audio as well as 38-56KHz IR to control video sources.
A complete 10HMIP0004 (transmitter/sender) and 11IPHM0003 (receiver) is capable of transmitting HDMI signals up to 394 feet over a single Cat5e/6 cable. The transmitter has 4 outputs to support 4 receivers. Taking advantage of each receivers four RJ45 ports, receivers can be cascaded up to three layers deep allowing for multiple displays.
The Ocean Matrix 10HMIP0004 is the perfect fit in restaurant digital signage applications, sports bar TV distribution, office and corporate message boards and more.
Features:
- Includes 4 RJ45 Ports
- Can Be Used as a 4-Port Switch
- Wide-Band IR Control (38khz to 56khz)
- Supports Point-to-Point, and Point-to-Many Configurations
- LPCM 2 Channel Audio
- Supports TCP/IP Protocol
- HDCP Compliant
- Black Powder-Coated Steel Cabinet
- CE and FCC Certified
