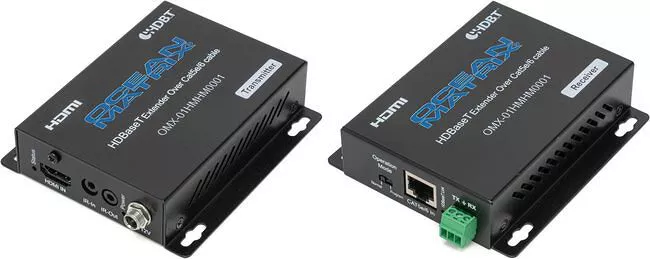

Ocean Matrix OMX-01HMHM0001 Video Extender Transmitter/Receiver
Ocean Matrix 01HMHM0001 HDBaseT 4K HDMI Extender Set with Two-Way IR - RS232 - CEC Pass Through - PoC
For a cost effective 4K HDMI over HDBaseT extension system that doesn't compromise on quality, specify the Ocean Matrix 01HMHM0001 in your next digital signage project. It handles 4K@30Hz signal transmission up to 130 feet and passes 1080p HD signals up to 230 feet both by way of a single Ethernet CAT5e/CAT6 cable.
The 01HMHM0001 makes installations a breeze as it supports PoC (Power Over Cable) avoiding the need for a power supply at the receive-end of your system. The system also delivers multiple control options including 2-way IR Remote Control for cable boxes, signage players or Blu-ray players and Serial RS232 Control for touchscreen and scanner devices. The system also offers full audio support for DTS-HD and Dolby-HD. It is HDCP2.2/1.4 compliant and has convenient surface mount ears.
Features:
- Extends Two-Way IR Signals
- RS232 Control Signal Transmission
- Full HD support: 1080p@60Hz@48b/pixels, 4K@30Hz and 3D
- Supports CEC Bypass
- Transmission Distance: 1080P Up to 230 Feet, 4K up to 131 Feet
- 12V PoC
- Rugged Black Powder-Coated Metal Enclosure
- CE, FCC Certified
