MPN: OMX-01HMBT0009

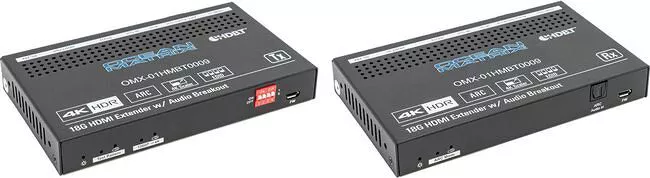

Ocean Matrix OMX-01HMBT0009 Video Extender Transmitter/Receiver
Highlights
About
Specifications
Ocean Matrix OMX-01HMBT0009 HDBaseT 4K HDMI Extender Set with ARC RS232- EDID- CEC- Two-Way IR- Two-Way PoC
The Ocean Matrix OMX-01HMBT0009 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to 131 feet. A 4-pin DIP switch allows for selection of multiple built-in EDID settings. A test pattern button generates an image of 1080P/60Hz or 4K/60Hz color bar for output.
This extender set supports video resolutions up to 4K2K@60Hz 4:4:4 and 1080P to 4K upscaling. Additional features include audio de-embedding, ARC, two-way IR control, RS232 pass through, and two-way 24V PoC.
Features:
- Extends Two-Way IR Signals
- RS232 Pass Through
- EDID Management
- CEC Pass Through
- Supports ARC
- Supports Audio De-embedding - TOSLINK/SPDIF Out on Receiver
- Two-Way 24V PoC
- Transmission Distance: 1080P up to 230 Feet, 4K up to 131 Feet
- Two-Way PoC
- Rugged Black Powder-Coated Metal Enclosure
- CE, FCC Certified
