Highlights:
  • Application/Usage: Wireless Data Network
  • Directivity: Directional
  • Product Type: Antenna
  • Condition: New
Contact sales for pricing

The ProSafe ANT24D18 indoor/outdoor directional antenna provides a 3-in-1 solution for mixed applications in combination with an 802.11b or 802.11g access point or wireless router. One, it delivers extended access point range in a single floor environment ideally positioned in the corner of a building. Two, it functions point-to-point so that you can wirelessly connect LANs between buildings in a campus-type environment. Three, it provides multifloor transmission when placed on a ceiling, as the higher power output extends the range through typical flooring materials. Includes several mounting options (fixed wall, wall adjustable, and pole), cable sold separately.

General Information
Manufacturer
Netgear, Inc
Manufacturer Part Number
ANT24D18
Manufacturer Website Address
http://www.netgear.com
Brand Name
Netgear
Product Line
ProSafe
Product Model
ANT24D18
Product Name

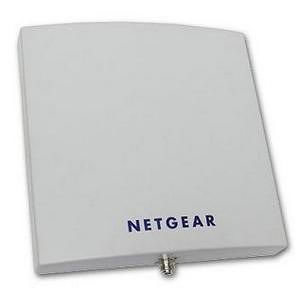

ProSafe ANT24D18 Patch Panel Directional Antenna
Product Type
Antenna
Technical Information
Directivity
Directional
Maximum Antenna Range
9.8 Mile
Frequency Band Type
UHF
Frequency
2.40 GHz to 2.49 GHz
Antenna Gain
14 dBi
Interfaces/Ports
Number of Connectors
1
Connector Type
Reverse N
Physical Characteristics
Height
10.4"
Width
10.4"
Depth
1.6"
Form Factor
Patch
Weight (Approximate)
3.35 lb
Miscellaneous
Application/Usage
Wireless Data Network
Package Contents
  • ProSafe ANT24D18 Patch Panel Directional Antenna
  • Wall and ceiling mount brackets and hanging materials
  • One reverse N type to reverse SMA adapter
  • 2 meter cable
  • Lightening Arrestor
  • Installation guide
  • Warranty/Support information card
Additional Information
  • Range estimation is based on two wireless nodes each with an ANT24D18 antenna attached, associating with each other at 11 Mbps under ideal line-of-sight conditions
  • Gain: A ratio of decibels to an isotropic antenna that is commonly used to measure antenna coverage
Warranty
Limited Warranty
2 Year
