Highlights:
  • Maximum Resolution: 1920 x 1080
  • Brightness: 700 Nit
  • Platform Supported: PC | Mac
  • Product Type: LCD Monitor
Contact sales for pricing

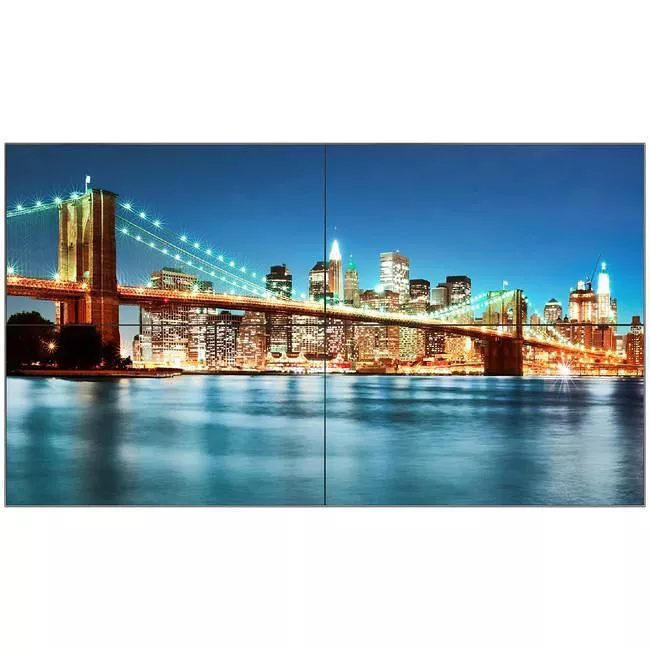

NEC's complete 46 2x2 LCD TileMatrix Video Wall Solution has joined the popular series of preconfigured video wall bundles. The X463UN-TMX4P delivers an all-in-one, easy-to-config­ure and cost-effective solution that is ideal for dynamic digital signage, information display and command & control applications requiring near-seamless aesthetics. Exclusive TileMatrix and TileComp technologies, combined with the ultra-narrow bezel design of the NEC X463UN and the full adjustment capabilities of the Peerless DS-VW765-LAND mount, provide for a near seamless video wall without the need for additional third-party equipment.

General Information
Manufacturer
NEC Display Solutions
Manufacturer Part Number
X463UN-TMX4P
Manufacturer Website Address
http://www.necdisplay.com
Brand Name
NEC Display
Product Model
X463UN-TMX4P
Product Name
(46") Ultra-Narrow 2x2 TileMatrix Video Wall Solution - Digital
Product Type
LCD Monitor
Technical Information
Number of Screens
4
Screen Size Class
46"
Viewable Screen Size
46"
Screen Mode
Full HD
Response Time
8 ms
Aspect Ratio
16:9
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Display Orientation
Landscape/Portrait
Mount Type
Wall Mountable
Backlight Technology
LED
Features
  • TileMatrix (10x10)
  • TileComp
  • CableComp+
  • Carbon Footprint Meter
  • Ambient Light Sensor
  • Picture on Picture
  • Side-by-side View Support
  • Screen Saver
  • Video Wall
  • Video
    Maximum Resolution
    1920 x 1080
    Standard Refresh Rate
    60 Hz
    Color Supported
    16.7 Million Colors
    Contrast Ratio
    3,500:1
    Brightness
    700 Nit
    Audio
    Speakers
    Yes
    Interfaces/Ports
    Network (RJ-45)
    Yes
    DVI
    Yes
    HDMI
    Yes
    VGA
    Yes
    Composite Video
    Yes
    Headphone
    Yes
    S-Video
    Yes
    DisplayPort
    Yes
    Built-in Devices
    Built-in Devices
    Speaker
    Power Description
    Operating Power Consumption
    120 W
    Standby Power Consumption
    500 mW
    Physical Characteristics
    VESA Mount Compatible
    Yes
    VESA Mount Standard
    300 x 300
    Height
    22.8"
    Width
    40.3"
    Depth
    4.6"
    Height with Stand
    29"
    Width with Stand
    40.30"
    Depth with Stand
    13"
    Weight (Approximate)
    53.57 lb
    Weight with Stand (Approximate)
    84.66 lb
    Miscellaneous
    Package Contents
    • (46") Ultra-Narrow 2x2 TileMatrix Video Wall Solution - Digital
    • 4 x Mounting System
    • 4 x DVI Loop-through Cables
    • 5m DVI Cable
    • 3 x Null Modem Cables
    • Tripp Lite Surge Suppressor
    • Power Cord
    • Batteries
    • CD-ROM (User Manual)
    Platform Supported
  • PC
  • Mac
  • Warranty
    Limited Warranty
    3 Year
