MLX-MCP1650-H01AE30-00
MPN: MCP1650-H01AE30

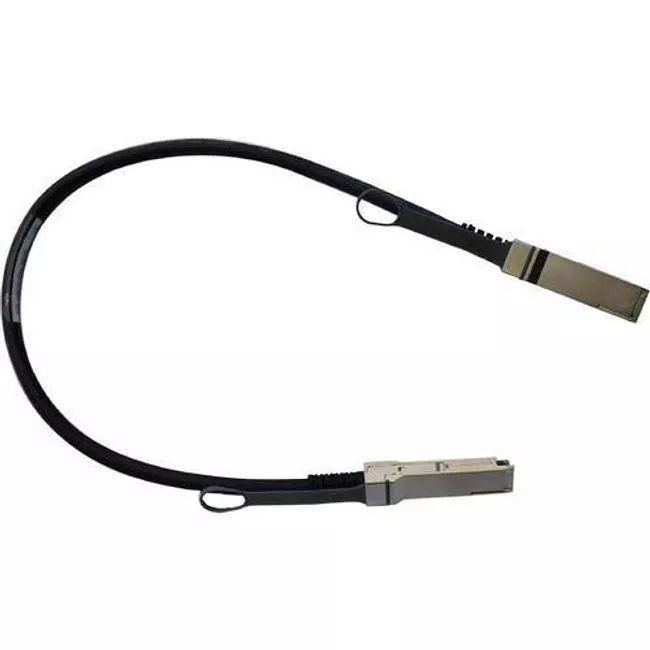

Mellanox MCP1650-H01AE30 LinkX - QSFP28 - Passive - QSFP56 - 1.5m Copper Network Cable

Highlights

NVIDIA MCP1650-H01AE30 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1.5m Black Pulltab 30AWG

HDR 200Gb/s QSFP56 Direct Attach Copper Cable

NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.

NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.

NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.

Highlights

  • IBTA InfiniBand HDR compliant
  • Up to 200Gb/s data rate
  • 4x 50Gb/s PAM4 modulation
  • SFF-8665 compliant
  • Operating case temperature 0-70C
  • Single 3.3V supply voltage
  • Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
  • Hot pluggable
  • RoHS compliant
  • LSZH (Low Smoke Zero Halogen) jacket
  • LF (Lead Free) HF (Halogen Free) PCB
  • SFF-8636 compliant I2C management interface
