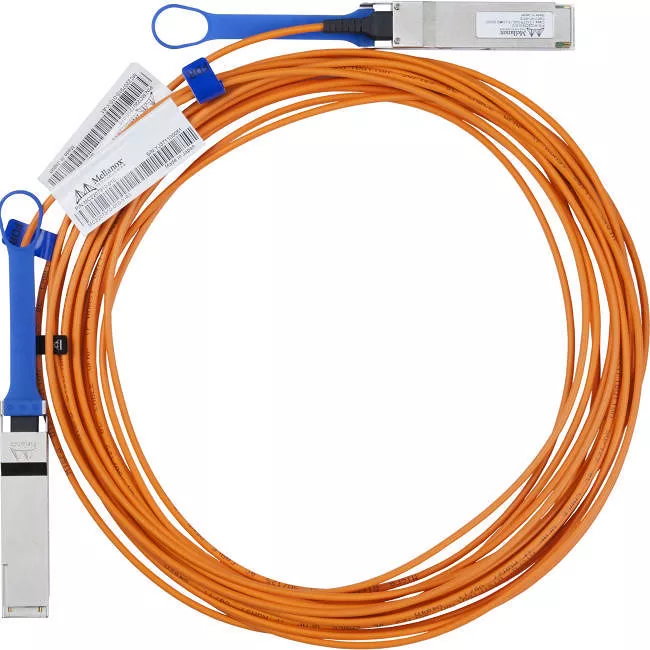

Mellanox MC220731V-003 AOC Cable VPI 56Gb/s QSFP 3m

Highlights

NVIDIA MC220731V-003 Active Optical Cable VPI up to 56Gb/s QSFP 3m

56Gb/s QSFP+ VPI Active Optical Cable

NVIDIA Networking MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems.

This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace. The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.

MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.

Highlights

  • Up to 56Gb/s data rate
  • 1W maximum power consumption
  • SFF-8685 and SFF-8436 compliant
  • Operating case temperature of 0-70C
  • 3.3V power supply
  • BER better than 1E-15
  • Hot pluggable
  • Up to 100 meters in length
  • Standard multimode fiber
  • RoHS compliant
  • Plenum rated (OFNP)
