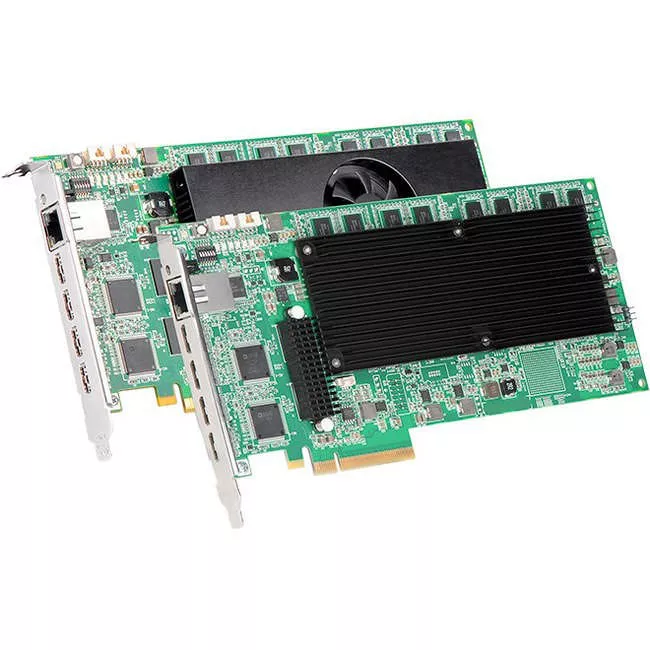

Matrox MURAIPXI-D4JHF Mura IPX 4K Capture and IP Decode (MURA-IPX-I4DHF) - Fanless

The Matrox® MURA IPX 4K capture and IP decode cards provide four HDMI or two DisplayPort™ 1.2 inputs for high-resolution capture of multiple physical and IP sources, plus high-density decoding of up to four 4K or 16 HD streams-offering an unmatched audiovisual experience.

These PCI Express® cards can easily satisfy system builder requirements through the mixing and matching of a wide selection of Matrox video wall components, delivering a scalable solution to accommodate any video environment. Ideal for control rooms, digital signage, AV presentations and other applications requiring high-density capture, streaming, recording, decoding and control.

HDCP

Capture up to 4 x 4K HDCP protected content with a single Mura IPX Capture card.

Proven video wall ecosystem

• Pair D-Series with Matrox Mura IPX capture cards to build video wall controllers with exceptional multi-channel 4K capture and IP encode and decode capabilities.
• Drive up to 64 1920x1080p60 displays by pairing D-Series with Matrox Mura IPX capture cards and QuadHead2Go™ multi-monitor controllers.

High-Density H.264 Decoding

Matrox MURA IPX 4K Capture & IP Decode cards have been engineered to offer world-class, high-density H.264 codec processes.

Resolution HDMI or DisplayPort 1.2 capture and IP decoding of a single 8K stream or multiple 4K, Full HD, or SD streams.

Quality decoding through the support of desktop-grade, high-frequency content. Not requiring color space compression.

Number of streams for applications requiring decode and display of a high number of streaming IP sources.

Decoding Support for H.264 Universal Standard

Mura IPX supports high-density H.264 level 5.2 decoding, and thrives on the massive interactivity this produces with 3rd-party hardware and software products. Collectively accepted on the vast majority of network infrastructures, the H.264 codec allows for efficient decoding at low bitrates and high quality (from SD to 8K) based on user needs.

Dynamic System Scalability

Through the integration of the low-footprint Mura IPX cards, video wall controllers, multiviewers, and personal video walls can be built to the scale required for specific projects. Optimized for performance, Mura IPX provides options to allow greater flexibility in integration while also offering enhanced thermal reliability.

Multi-Source HDMI Inputs for Video Capture

With four Mini HDMI or two DisplayPort inputs, Mura IPX can capture a wide variety of inputs, dependent on the number of sources and the display resolution required.

Direct Memory Access

Mura IPX series capture cards provide the ability to directly access system or graphics memory for a given application to obtain the raw data and perform a variety of processing operations -including analysis, warping, and rendering, among others.
