MTX-M9138-E1024LAF-00
MPN: M9138-E1024LAF

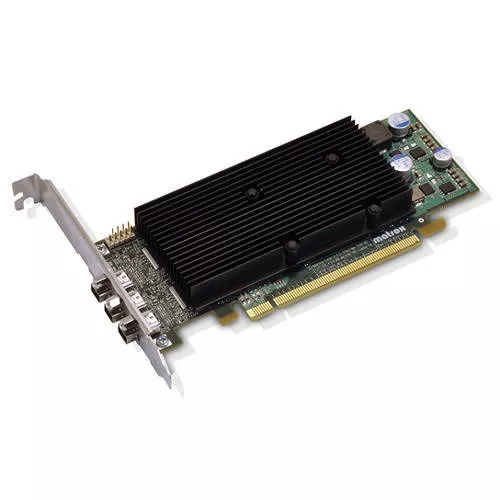

Matrox M9138-E1024LAF M-Series M9138 Graphics Card


Highlights

The Matrox M9138 LP PCIe x16 triple graphics card renders pristine image quality on up to three DisplayPort™ monitors at resolutions up to 2560 x 1600 per output, for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, such as independent and stretched desktop modes, the M9138 drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M-Series card for additional monitor support.

Features

  • High-resolution two DisplayPort monitor support: Support resolutions up to 2560x1600 per output
  • Native PCI express x16 performance: Maximum bandwidth to ensure best performance
  • 1 GB of memory: For enhanced performance in demanding multi-monitor applications
  • Low-profile form factor: To fit in a wide variety of systems; includes bracket for full-height ATX form factor
  • Passive cooling and low power consumption: Fanless design eliminates noise and increases product reliability
  • Stretched and independent desktop modes : Expand your desktop across multiple monitors or set each monitor independent of each other
  • Edge Overlap: Easily and intuitively adjust the number of overlapping pixels to create a seamless, unified image on up to eight edge blending projectors.
  • M-Series multi-card support1 : Add an additional M-Series card into the same system to drive up to 11 displays from two cards
  • Joined graphics card mode2 : Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
  • Matrox Clone : View a copy of one display on the other displays
  • Wide enterprise flexibility: Unified driver package compatible with other Matrox products
  • Matrox PowerDesk software: Easily configure and manage program windows on multiple monitors
  • Multiple operating system support : Display drivers for Microsoft® Windows® 10 (32-bit, 64-bit; non-WHQL), Windows Server® 2012 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Embedded Standard 7 (32-bit), Windows Vista® (32-bit, 64-bit), Windows Server 2008 R1 (32-bit, 64-bit), Windows Server 2008 R2, Windows XP (32-bit, 64-bit), Windows Server 2003 and Linux®3

1 Operating system, hardware and driver compatibility need to be verified for large monitor configuration arrays. Contact Matrox for details.
2 Available only under Microsoft XP and Windows 7 XDDM mode when M9188 is the additional card.
3 M-Series cards support a wide range of Linux operating systems. Refer to the README file in the driver download section for compatible Linux distributions or contact Matrox directly.
