MSH-CV565-MGB-00
MPN: CV565-MGB

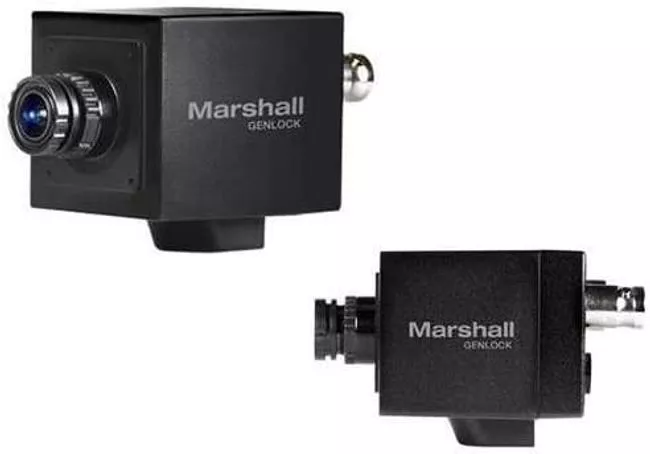

Marshall CV565-MGB MINI Genlock Broadcast Camera for video capture 2.5MP with Tri-Level Sync 1080p


Highlights

Marshall Electronics next generation Miniature GENLOCK CV565-MGB PRO-Series Camera adds the convenience of Signal Sync at camera level to ensure seamless switch transitions between cameras on location.

Using Tri-Level Sync the CV565-MGB locks 3G/HD video signals (genlock) up to 1920x1080p @ 59.94/50/60 frames per second, as well as 1920x1080i @ 59.94/50/60fps and 1280x720p @ 59.94/50/60fps. Also featuring a 3.5mmTRS Mic/Line level (selectable) input with 2.5V power and broadcast convenient HDSDI/3GSDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3 megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.9 7/25fps.

New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV565-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.
