Marshall CV506 Miniature HD Camera for video capture (HDMI 3G/HD-SDI) with Lens - RS485 Adjustable & Audio Embedding
- Product Type: Surveillance Camera
- Effective Camera Resolution: 2.5 Megapixel
- Image Sensor Type: CMOS
- Maximum Video Resolution: 1920 x 1080

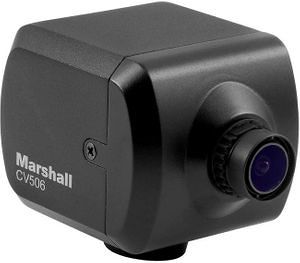

The Marshall CV506 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV506 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.
The CV506 utilizes full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV506's threaded M12 lens mount offers a wide range of prime and varifocal lens options.
The CV506 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
