Marshall CV226 All-Weather HD Lipstick Camera with 3GSDI - RS-485 Control

MPN: CV226
Highlights
  • Product Type: Surveillance Camera
  • Effective Camera Resolution: 2.5 Megapixel
  • Image Sensor Type: CMOS
  • Maximum Video Resolution: 1920 x 1080

We'll get you the best price.

Marshall CV226 All-Weather HD Lipstick Camera with 3GSDI - RS-485 Control

MPN: CV226
Highlights
  • Product Type: Surveillance Camera
  • Effective Camera Resolution: 2.5 Megapixel
  • Image Sensor Type: CMOS
  • Maximum Video Resolution: 1920 x 1080

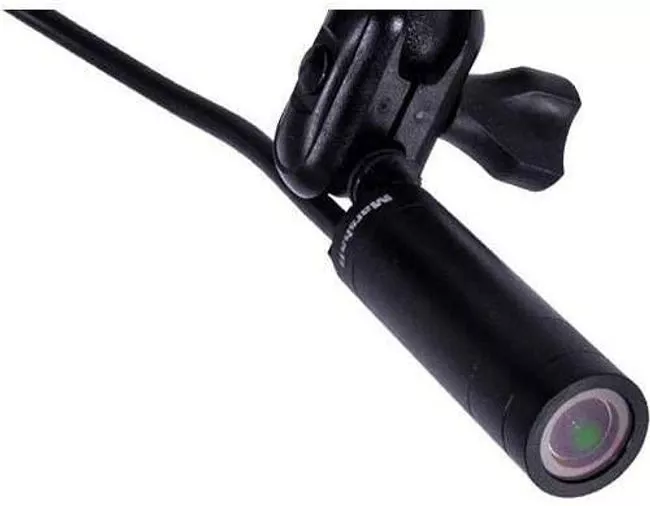

The Marshall CV226 All-Weather Lipstick Camera captures crisp HD color video with professional adjustment and control in a compact lipstick shaped body only 19.5mm in diameter and 62.5mm long. The CV226 is built for rugged outdoor or dirty environments where dust, dirt, rain, mud, or snow become a factor.

Miniature Camera Size

The Marshall CV226 can be positioned in very discreet locations with the ability to withstand dirty, dusty, and wet environments. Despite its compact form factor, the CV226 produces reliable crystal clear video over full-size 3G/HD-SDI (BNC) in Progressive or Interlaced resolutions up to 1920x1080. As shown with the optional CVM-6 accessory mount.

Improved Sensors and Design

The Marshall CV226 utilizes the latest Marshall sensor and processor technology with a step-up in video performance and very low noise threshold, even in low-light conditions. Additionally, the CV226 contains a more durable and flexible RG6 coaxial breakout cable to withstand heavy use and bend rotation.

Versatile Placement & Mounting

The Marshall CV226 includes a standard 1/4-20 mount socket for use with tripods, gooseneck, and other camera mounting hardware. For enhanced flexibility, combine with the Marshall CVM-6 Adhesive Camera Mount Kit and lipstick clip.

Flexible Control & Framerate Options

Easily select between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, the CV226 supports RS485 Visca control, allowing precision picture adjustments to be performed from control rooms, OB vans, and or broadcast trucks.
