MSI-Z77A-GD80-00
MPN: Z77A-GD80

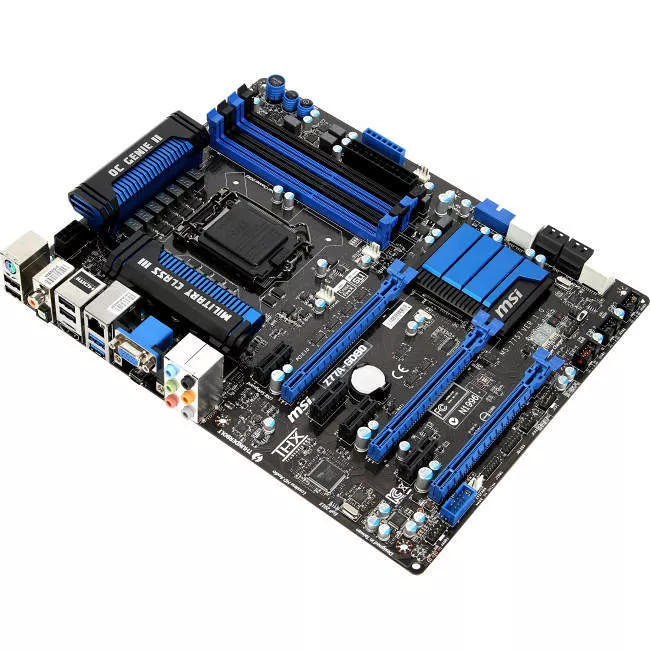

MSI Z77A-GD80 Desktop Motherboard - Intel Z77 Express Chipset - Socket H2 LGA-1155 - ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
Z77A-GD80
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
Z77A-GD80
Product Name
Z77A-GD80 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Z77 Express
Total Processor Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Core i5
  • Core i7
  • Core i3
  • Pentium
  • Celeron
  • Xeon
    • 64-bit Processing
    Yes
    Multi GPU Supported
  • SLI
  • CrossFireX
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
    UDIMM
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-2400/PC3-19200 (O.C.)
  • DDR3-2133/PC3-17000 (O.C.)
  • DDR3-1866/PC3-15000 (O.C.)
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 2400 MHz
  • 2133 MHz
  • 1866 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Memory
    1.72 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Model
    ALC898
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    7
    PCI Express Standard
    PCI Express 3.0
    Total Number of PCI Express Slots
    7
    Number of PCI Express x1 Slots
    4
    Number of PCI Express x16 Slots
    3
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    4
    Number of USB 3.0 Ports
    2
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    2
    VGA
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Thunderbolt
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    8
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    3
    Number of Onboard USB 3.0 Ports
    1
    Total Number of Onboard FireWire/i.LINK Ports
    1
    Number of Onboard FireWire/i.LINK 400 Ports
    1
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Controls/Indicators
    Buttons & Keys
  • BIOS Switch
  • Power
  • OC Genie
  • Reset
  • CMOS Clear
    • Power Description
    Power Supply Supported
    EPS12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • Z77A-GD80 Desktop Motherboard
    • Driver / Utility DVD
    • User Guide
    • Back IO Shield
    • SATA Cable
    Certifications & Standards
    • FCC
    • CE
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Compliance
    Waste Electrical and Electronic Equipment Directive (WEEE)
    Warranty
    Limited Warranty
    3 Year
