MSI-J1800I-00
MPN: J1800I

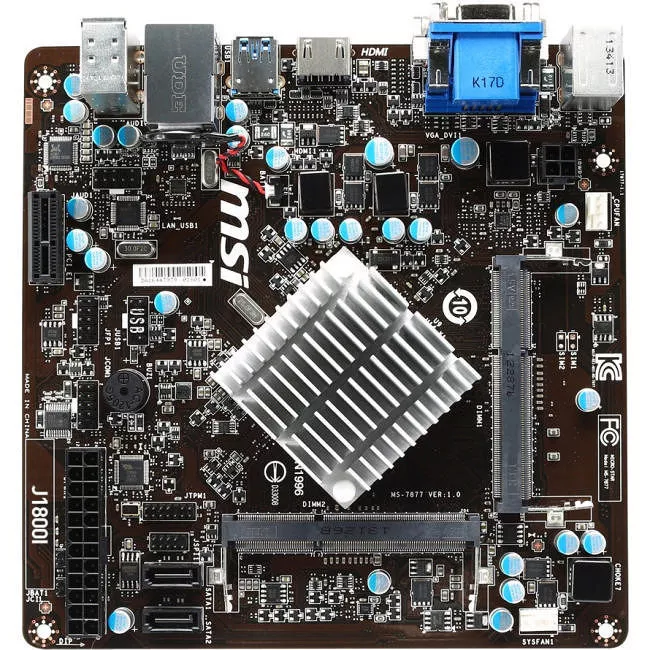

MSI J1800I Desktop Motherboard - Intel Chipset - Mini ITX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
J1800I
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
J1800I
Product Name
J1800I Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
64-bit Processing
Yes
Integrated Processor
Integrated Processor Manufacturer
Intel
Integrated Processor Type
Celeron
Integrated Processor Model
J1800
Memory
Number of Memory Slots
2
Memory Form Factor
SoDIMM
Maximum Memory Supported
8 GB
Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    2 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC887
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    1
    Number of PCI Express x1 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    3
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    1
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DVI
    Yes
    Number of DVI Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 2.0 Ports
    2
    Onboard Serial Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Certifications & Standards
    • FCC
    • KC (KOREA CERTIFICATION)
    • BSMI
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
