Highlights:
  • Processor Socket: Socket H4 LGA-1151
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 32 GB
Contact sales for pricing
  • Supports 6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
  • Supports DDR4-2133 Memory
  • DDR4 Boost: Give your DDR4 memory a performance boost
  • USB 3.1 Gen1 + SATA 6Gb/s
  • VGA Armor: Reinforced Armor slot
  • Click BIOS: Secure and Reliable UEFI BIOS solution
  • Audio Boost: Reward your ears with studio grade sound quality
  • Military Class 4: Top Quality & Stability
  • Guard-Pro: Improved Protection and Power Efficiency
  • EZ Debug LED: Easiest way to troubleshoot
  • Intel® SBB Support: Improves Productivity, Management and Security
  • WHQL CERTIFIED.WINDOWS 10 READY.
General Information
Manufacturer
MSI
Manufacturer Part Number
H110M PRO-VD PLUS
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
H110M PRO-VD PLUS
Product Name

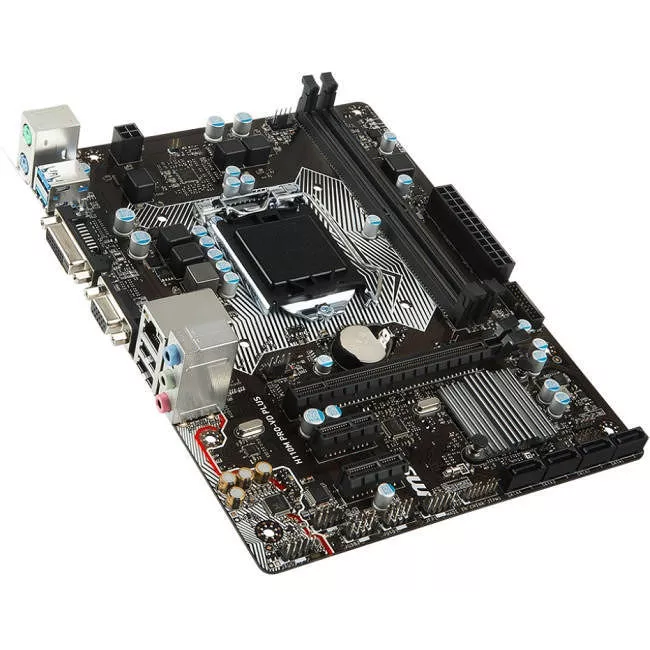

H110M PRO-VD PLUS Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H4 LGA-1151
Processor Supported
  • Core i7
  • Core i3
  • Core i5
  • Celeron
  • Pentium
  • Memory
    Number of Memory Slots
    2
    Memory Form Factor
  • UDIMM
  • DIMM
  • Maximum Memory
    32 GB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    2.13 GHz
    I/O Controller
    Controller Type
    Serial ATA/600
    Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 3.1 Ports
    2
    VGA
    Yes
    DVI
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 3.1 Ports
    2
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    8.9"
    Depth
    6.8"
    Warranty
    Limited Warranty
    3 Year
