MSI-CSM-H87M-G43-00
MPN: CSM-H87M-G43

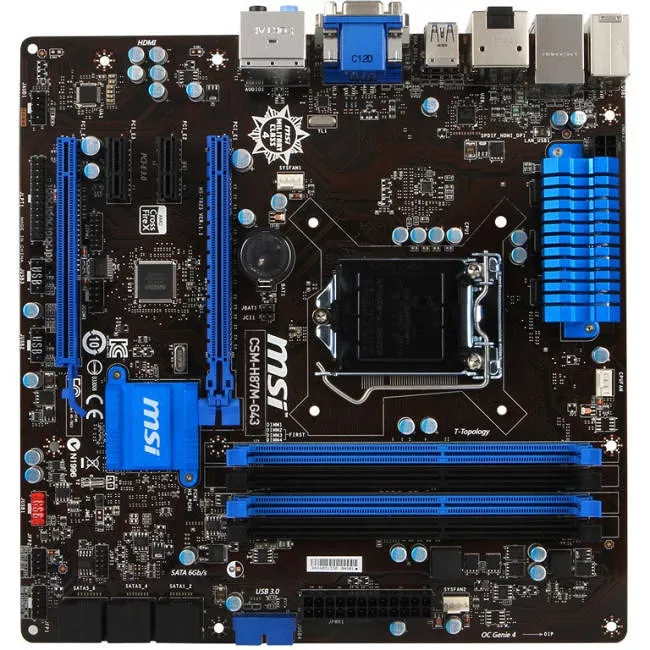

MSI CSM-H87M-G43 Desktop Motherboard - Intel H87 Express Chipset - Socket H3 LGA-1150 - Micro ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
CSM-H87M-G43
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
CSM-H87M-G43
Product Name
CSM-H87M-G43 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
H87 Express
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
  • Xeon
    • 64-bit Processing
    Yes
    Multi GPU Supported
    CrossFireX
    Memory
    Number of Memory Slots
    4
    Memory Form Factor
    DIMM
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 5
  • 1+0
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Memory
    1.72 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC892
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    4
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
    • Total Number of PCI Express Slots
    4
    Number of PCI Express x1 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    4
    Number of USB 3.0 Ports
    2
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    8
    Number of Onboard USB 2.0 Ports
    6
    Number of Onboard USB 3.0 Ports
    2
    Onboard Parallel Header
    Yes
    Onboard Serial Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Certifications & Standards
    • CE
    • FCC
    • KC (KOREA CERTIFICATION)
    • C-TICK
    • BSMI
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • China RoHS
    • Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
