MSI-CSM-B85M-P32-00
MPN: CSM-B85M-P32

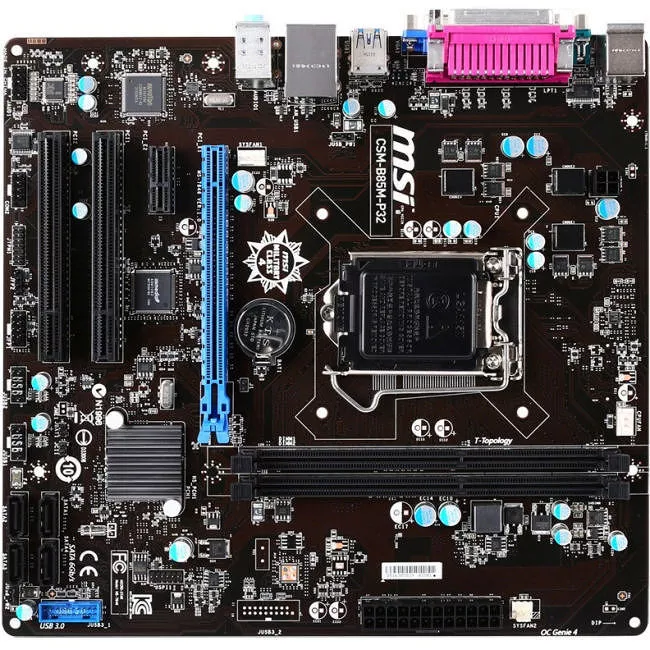

MSI CSM-B85M-P32 Desktop Motherboard - Intel B85 Express Chipset - Socket H3 LGA-1150 - Micro ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
CSM-B85M-P32
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
CSM-B85M-P32
Product Name
CSM-B85M-P32 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
B85 Express
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory Supported
    16 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/600
  • Serial ATA/300
    • Video
    Onboard Video
    CPU Dependent Video
    Graphics Controller Memory
    1.72 GB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Audio
    Sound Controller Model
    ALC887
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    4
    Number of PCI Slots
    2
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
    • Total Number of PCI Express Slots
    2
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    2
    Parallel Port
    Yes
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    6
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    2
    Onboard Serial Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9"
    Miscellaneous
    Certifications & Standards
    • CE
    • FCC
    • KC (KOREA CERTIFICATION)
    • BSMI
    • C-TICK
    Environmentally Friendly
    Yes
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
