MSI-990FXA-GD65 V2-00
MPN: 990FXA-GD65 V2

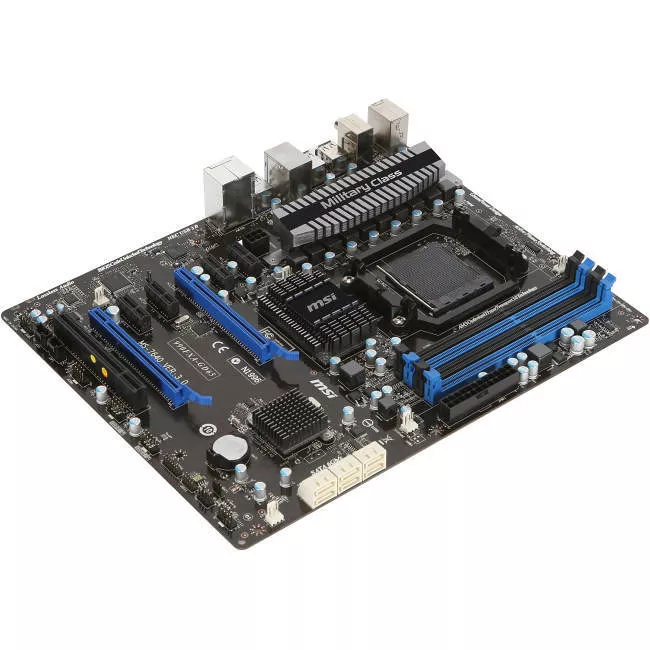

MSI 990FXA-GD65 V2 990FXA-GD65V2 Desktop Motherboard - AMD 990FX Chipset - Socket AM3+ - ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
990FXA-GD65 V2
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
990FXA-GD65V2
Product Name
990FXA-GD65V2 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
990FX
Total Processor Supported
1
Processor Technology
  • HyperTransport 3.0 Technology
  • Cool'n'Quiet Technology
    • Processor Socket
    Socket AM3+
    Processor Supported
  • Phenom II X3
  • Phenom II X4
  • Phenom II X2
  • Phenom II X6
  • Phenom II X8
  • Athlon II X3
  • Athlon II X4
  • Athlon II X2
  • Sempron
  • Phenom II
  • Athlon II
    • HyperTransport Speed (MT/s)
    5200
    64-bit Processing
    Yes
    Multi GPU Supported
  • SLI
  • CrossFireX
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
    UDIMM
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-2133/PC3-17000 (O.C.)
  • DDR3-1866/PC3-15000 (O.C.)
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 2133 MHz
  • 1866 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    No
    Audio
    Sound Controller Model
    ALC892
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    7
    Number of PCI Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    6
    Number of PCI Express x1 Slots
    4
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    10
    Number of USB 2.0 Ports
    8
    Number of USB 3.0 Ports
    2
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    2
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    2
    Number of Onboard USB 2.0 Ports
    2
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Controls/Indicators
    Buttons & Keys
    CMOS Clear
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    ATX
    Height
    3.4"
    Width
    12"
    Depth
    9.6"
    Weight (Approximate)
    4.20 lb
    Miscellaneous
    Package Contents
    • 990FXA-GD65V2 Desktop Motherboard
    • User Guide
    • Back IO Shield
    • SATA Cable
    • Driver / Utility DVD
    Certifications & Standards
    • FCC
    • CE
    • ErP
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
