MSI-970A-G46-00
MPN: 970A-G46

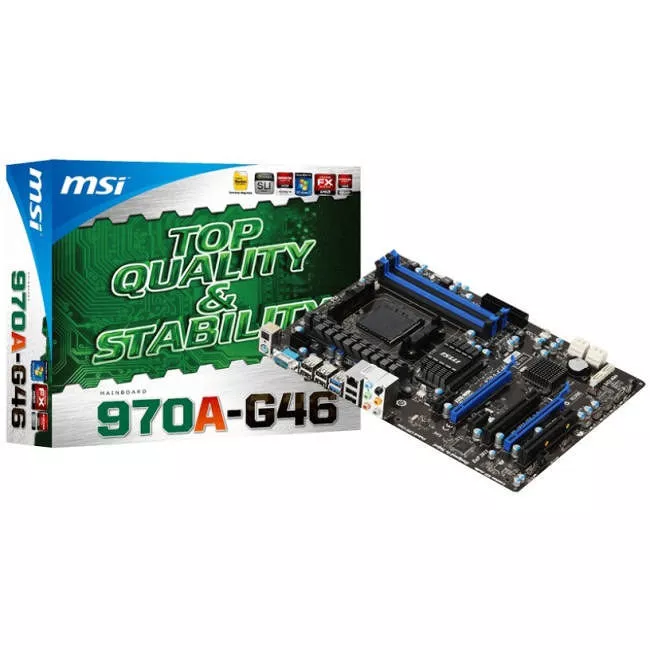

MSI 970A-G46 Desktop Motherboard - AMD 970 Chipset - Socket AM3+ - ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
970A-G46
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
970A-G46
Product Name
970A-G46 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
970
Total Processor Supported
1
Processor Technology
  • Cool'n'Quiet Technology
  • HyperTransport 3.0 Technology
    • Processor Socket
    Socket AM3+
    Processor Supported
  • FX
  • Phenom II X3
  • Phenom II X4
  • Phenom II X2
  • Phenom II X6
  • Phenom II
    • HyperTransport Speed (GT/s)
    4.8
    64-bit Processing
    Yes
    Multi GPU Supported
  • SLI
  • CrossFireX
    • Memory
    Number of Memory Slots
    4
    Memory Form Factor
    UDIMM
    Maximum Memory Supported
    32 GB
    Memory Standard
  • DDR3-2133/PC3-17000 (O.C.)
  • DDR3-1866/PC3-15000
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 2133 MHz
  • 1866 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC892
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    6
    Number of PCI Slots
    2
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    4
    Number of PCI Express x1 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    8
    Number of USB 2.0 Ports
    6
    Number of USB 3.0 Ports
    2
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 2.0 Ports
    3
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Controls/Indicators
    Buttons & Keys
    OC Genie
    Power Description
    Power Supply Supported
    EPS12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    8.9"
    Miscellaneous
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
