MSI-970A-G43-00

MPN: 970A-G43

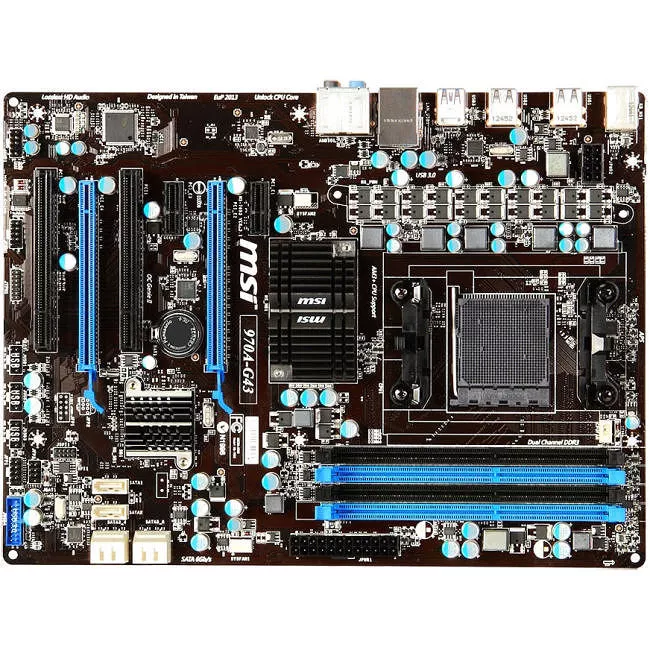

MSI 970A-G43 Desktop Motherboard - AMD 970 Chipset - Socket AM3+ - ATX

Highlights

About

Specifications

AMD 970 chipset based

All Solid CAP
OC Genie II: Easy Overclocking Technology
Support USB 3.0 and SATA 6Gb/s

Specifications

General Information

Manufacturer

MSI

Manufacturer Part Number

970A-G43

Manufacturer Website Address

http://www.msi.com

Brand Name

MSI

Product Model

970A-G43

Product Name

970A-G43 Desktop Motherboard

Product Type

Desktop Motherboard

Processor & Chipset

Chipset Manufacturer

AMD

Chipset Model

970

Total Processor Supported

1

Processor Technology

Cool'n'Quiet Technology

HyperTransport 3.0 Technology

Processor Socket

Socket AM3+

Processor Supported

FX

Phenom II X3

Phenom II X4

Phenom II X2

Phenom II X6

Athlon II X3

Athlon II X4

Athlon II X2

Sempron

HyperTransport Speed (GT/s)

4.8

64-bit Processing

Yes

Multi GPU Supported

CrossFireX

Memory

Number of Memory Slots

4

Memory Form Factor

DIMM

UDIMM

Maximum Memory Supported

32 GB

Memory Standard

DDR3-2133/PC3-17000 (O.C.)

DDR3-1866/PC3-15000

DDR3-1600/PC3-12800

DDR3-1333/PC3-10600

DDR3-1066/PC3-8500

Memory Technology

DDR3 SDRAM

Memory Speed Supported

2133 MHz

1866 MHz

1600 MHz

1333 MHz

1066 MHz

I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

0

1

5

1+0

Video

Onboard Video

No

Audio

Sound Controller Manufacturer

Realtek

Sound Controller Model

ALC887

Audio Channels

7.1

Network & Communication

Gigabit Ethernet

Yes

I/O Expansions

Number of Total Expansion Slots

6

Number of PCI Slots

2

PCI Express Standard

PCI Express 2.0

Total Number of PCI Express Slots

4

Number of PCI Express x1 Slots

2

Number of PCI Express x16 Slots

2

Interfaces/Ports

Total Number of USB Ports

8

Number of USB 2.0 Ports

6

Number of USB 3.0 Ports

2

Audio Line In

Yes

Audio Line Out

Yes

Microphone Port

Yes

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

1

PS/2 Port

Yes

Number of PS/2 Ports

2

Onboard Interfaces

Number of SATA Interfaces

6

Total Number of Onboard USB Ports

4

Number of Onboard USB 2.0 Ports

3

Number of Onboard USB 3.0 Ports

1

Onboard Serial Header

Yes

Onboard LEDs Header

Yes

Onboard Audio Header

Yes

Power Description

Power Supply Supported

ATX12V

Physical Characteristics

Form Factor

ATX

Height

2.6"

Width

12"

Depth

8.9"

Miscellaneous

Certifications & Standards

FCC
CE
BSMI
C-Tick
EuP 2013

Environmentally Friendly

Yes

Warranty

Limited Warranty

3 Year
