MSI-9642-060-00
MPN: 9642-060

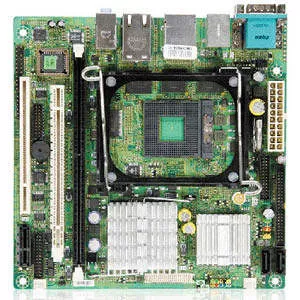

MSI 9642-060 945GME2 Desktop Motherboard - Intel 945GME Chipset - Socket M mPGA-478 - Micro ATX

Highlights
General Information
Manufacturer
MSI
Manufacturer Part Number
9642-060
Manufacturer Website Address
http://www.msi.com
Brand Name
MSI
Product Model
945GME2
Product Name
Fuzzy 945GME2 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
945GME
Total Processor Supported
1
Processor Socket
Socket M mPGA-478
Processor Supported
  • Core Duo
  • Core 2 Duo
  • Core Solo
  • Celeron M
    • Front Side Bus
  • 667 MHz
  • 533 MHz
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Maximum Memory Supported
    2 GB
    Memory Standard
  • DDR2-667/PC2-5300
  • DDR2-533/PC2-4300
    • Memory Technology
    DDR2 SDRAM
    Memory Speed Supported
  • 667 MHz
  • 533 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/150
  • Ultra ATA/100 (ATA-6)
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    Intel
    Graphics Controller Model
    GMA950
    Graphics Controller Memory
    128 MB
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC888
    Audio Channels
    5.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    Number of PCI Slots
    1
    Total Number of PCI Express Slots
    2
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of IDE Interfaces
    1
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    1
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year

    Specifications
